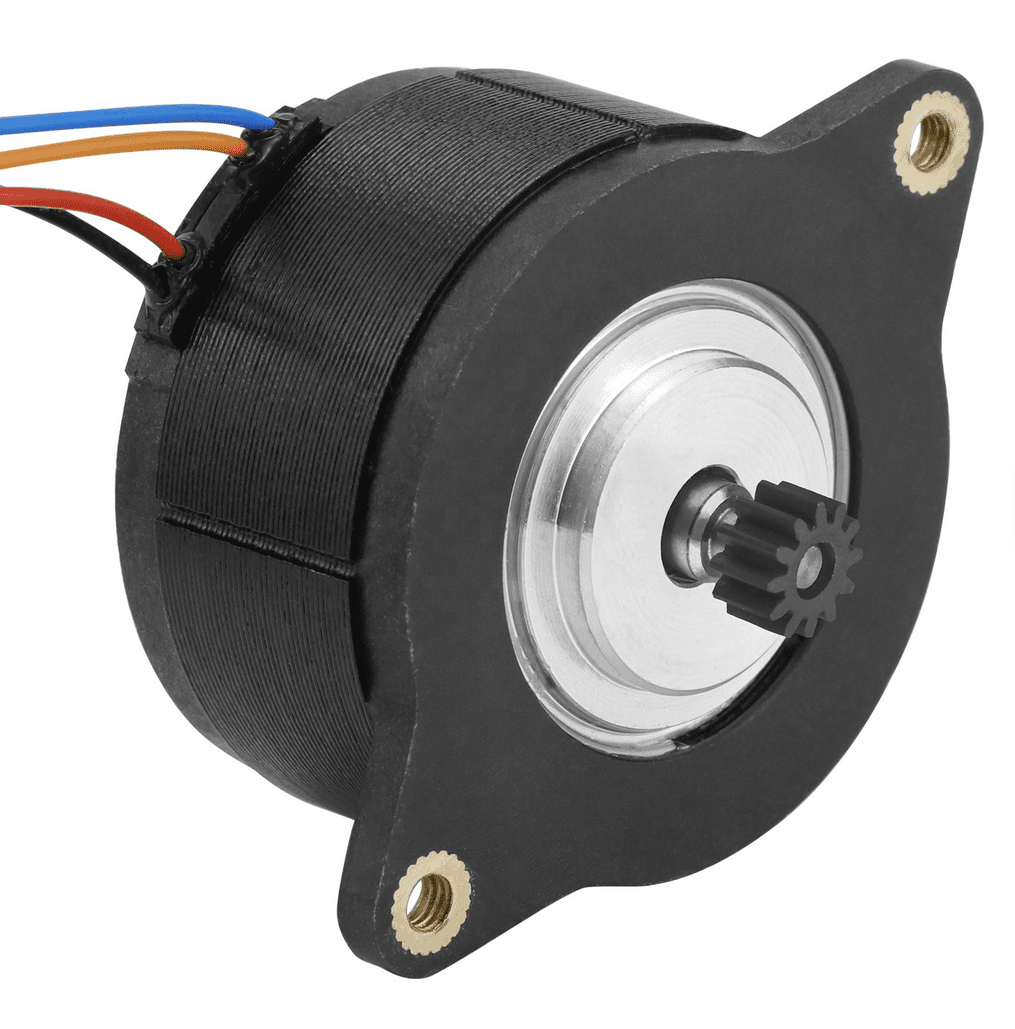

Fystec High Temperature Extruder Stepper Motor for CrealityK1/ K1 Max/ K1C

This FYSETC High Temperature Extruder Stepper Motor is designed as a direct replacement for the extruder motor in Creality K1, K1 Max, and K1C 3D printers. Built with Class H insulation rated to 180°C, it's engineered to perform reliably in the elevated temperatures found inside enclosed, high-speed printing environments. The compact 36mm pancake form factor and 12-tooth drive gear ensure a straightforward swap with no modifications required.

Key Features

• Class H insulation rated to 180°C for reliable operation in high-temperature enclosures
• 36mm round pancake design for direct drop-in replacement on K1 series printers
• 12-tooth drive gear matches original Creality specifications
• 1.8° step angle for precise filament control and consistent extrusion
• Includes connecting cable for plug-and-play installation

Specifications

• Motor Type: NEMA 14 Pancake Stepper
• Diameter: 36mm
• Step Angle: 1.8°
• Rated Current: 1.0A per phase
• Insulation Class: Class H (180°C)
• Drive Gear: 12-tooth
• Phases: 2
• Compatibility: Creality K1, K1 Max, K1C
• Includes: Motor with connecting cable

Ideal For

• Replacing a worn or failed extruder motor on Creality K1 series printers
• Upgrading to a motor with improved high-temperature tolerance
• Restoring consistent extrusion performance after motor overheating issues
• Users printing in enclosed chambers with elevated ambient temperatures

The FYSETC High Temperature Extruder Stepper Motor provides a reliable, heat-resistant solution for keeping your Creality K1, K1 Max, or K1C running smoothly—even under demanding thermal conditions. The plug-and-play design makes replacement quick and hassle-free.
