FYSETC High Temperature Extruder Stepper Motor for Creality K1/ K1 Max/ K1C
$21.00
FYSETC High Temperature Extruder Stepper Motor for Creality K1/ K1 Max/ K1C
$21.00
Order before 3pm for same-day dispatch via Australia Post. 2-5 business days to most of Australia. Shipping rates and policy
Free shipping on orders over $120 (excluding 3D printers)

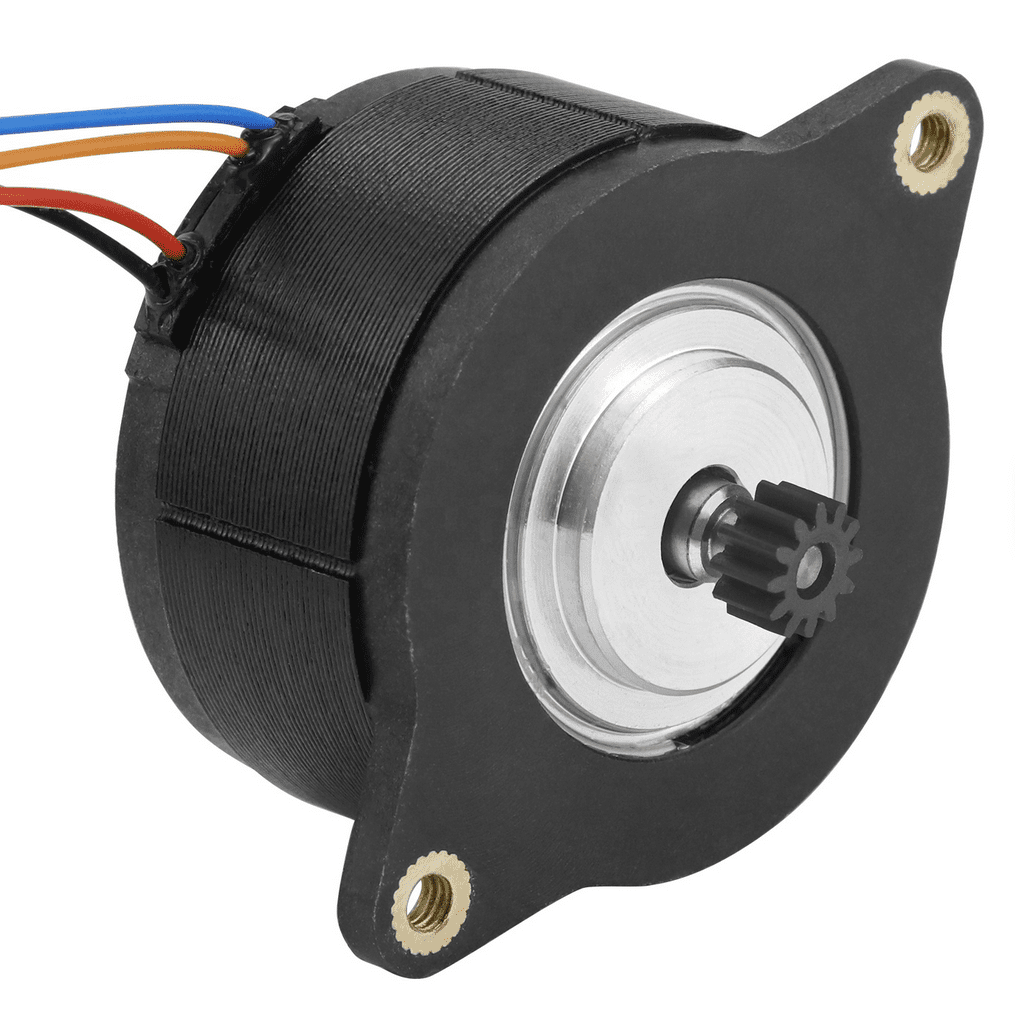

This FYSETC High Temperature Extruder Stepper Motor is designed as a direct replacement for the extruder motor in Creality K1, K1 Max, and K1C 3D printers. Built with Class H insulation rated to 180°C, it's engineered to perform reliably in the elevated temperatures found inside enclosed, high-speed printing environments. The compact 36mm pancake form factor and 12-tooth drive gear ensure a straightforward swap with no modifications required.
Key Features
- Class H insulation rated to 180°C for reliable operation in high-temperature enclosures
- 36mm round pancake design for direct drop-in replacement on K1 series printers
- 12-tooth drive gear matches original Creality specifications
- 1.8° step angle for precise filament control and consistent extrusion
- Includes connecting cable for plug-and-play installation

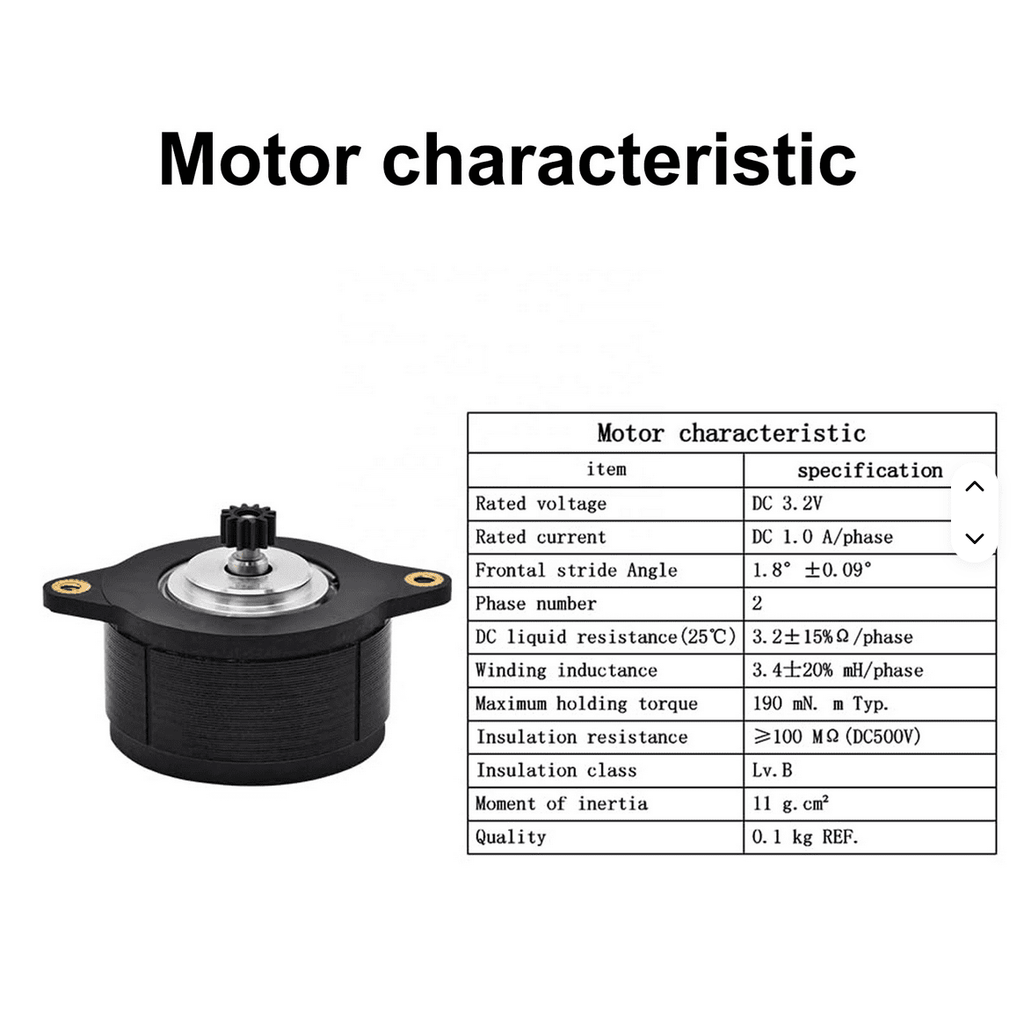

Specifications
- Motor Type: NEMA 14 Pancake Stepper
- Diameter: 36mm
- Step Angle: 1.8°
- Rated Current: 1.0A per phase
- Insulation Class: Class H (180°C)
- Drive Gear: 12-tooth
- Phases: 2

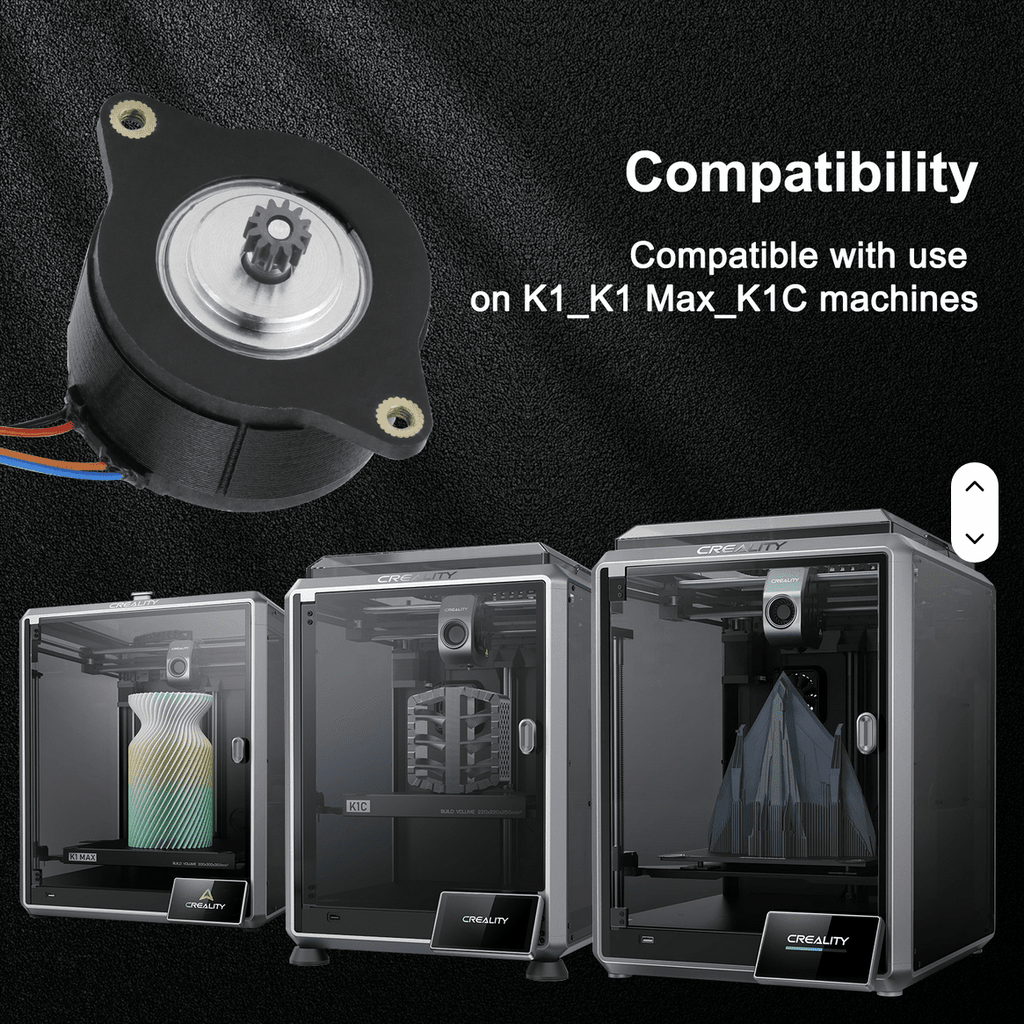

- Compatibility: Creality K1, K1 Max, K1C
- Includes: Motor with connecting cable
Ideal For
- Replacing a worn or failed extruder motor on Creality K1 series printers
- Upgrading to a motor with improved high-temperature tolerance
- Restoring consistent extrusion performance after motor overheating issues
- Users printing in enclosed chambers with elevated ambient temperatures
The FYSETC High Temperature Extruder Stepper Motor provides a reliable, heat-resistant solution for keeping your Creality K1, K1 Max, or K1C running smoothly—even under demanding thermal conditions. The plug-and-play design makes replacement quick and hassle-free.
