Creality V4.2.7 Silent Board TMC2225 Driver For Ender-3(Pro)/Ender-3V2/Ender 5/Ender-3Max
Pickup available at Gold Coast, Queensland. (Check Pickup Hours)
Usually ready in 4 hours
$9.75 Flat Rate Shipping.
Spend $100+ and get FREE Shipping
Local Australian Stock, Shipped Same Day!
Flexible returns

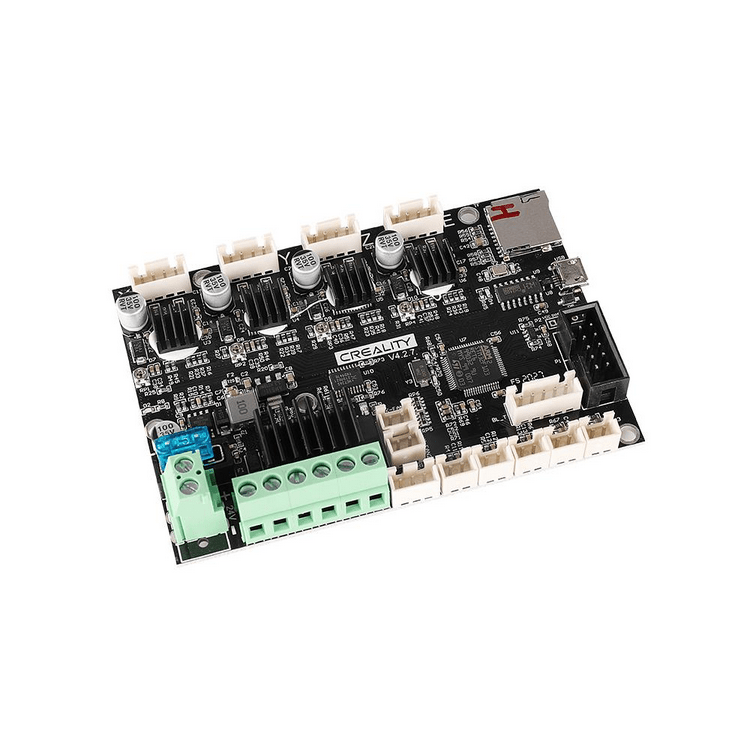

The Creality V4.2.7 Silent Board replaces older 8‑bit controllers with a 32‑bit mainboard and built‑in TMC2225 stepper drivers to bring whisper‑quiet performance to Ender‑3, Ender‑3 Pro, Ender‑3 V2, Ender‑3 Max, and Ender‑5 printers. Operating at under 50 dB, it dramatically reduces motor noise so the only sound you hear is your part cooling fan. The board ships with Marlin 2.0.1 firmware and a bootloader installed, making installation plug‑and‑play for the Ender‑3; models like V2, Max or Ender‑5 simply need firmware updated via micro SD. Thermal runaway protection is standard, and full support for filament sensors and BLTouch leveling is included. Built for reliability and modern motion control, it's the ultimate silent upgrade for louder 3D printers.
Key Features:
Ultra‑Low Noise: Integrated TMC2225 stepper drivers maintain performance at under 50 dB for whisper‑quiet printing.
32‑Bit Processing: Modern STM32 processor and native Marlin 2.0.1 deliver smoother motion and faster response.
Thermal Safety Built‑In: Firmware includes thermal runaway protection to shut down heating if temps exceed safe limits.
Plug‑and‑Play or Flashable: Installs directly for Ender‑3; updated firmware via SD card needed for models like Ender‑5 or Ender‑3 V2.
Expansion Ready: Supports BLTouch auto-bed leveling and filament runout sensor with dedicated ports.
Specifications:
Board Version: Creality V4.2.7, 32‑bit STM32 mainboard
Stepper Drivers: TMC2225 integrated for X/Y/Z/E axes
Firmware Installed: Marlin 2.0.1 with bootloader (V0.0.6 by Creality)
Supported Models: Ender‑3, Ender‑3 Pro, Ender‑3 V2, Ender‑3 Max, Ender‑5 & Ender‑5 Pro
Power Supply Input: 24 V input, 12 V output regulator onboard
Connectivity: micro‑USB port for configuration; micro‑SD slot for firmware updates
Expansion Ports: BLTouch, filament runout sensor, 4 motor connectors, 2 thermistors, 3 fans, endstops
Noise Level: Less than 50 dB during operation
Safety Features: Onboard thermal runaway detection; optimized circuitry for temperature stability
