Capricorn TL Series PTFE Tubing 1.75mm
Pickup available at Gold Coast, Queensland. (Check Pickup Hours)
Usually ready in 4 hours
Shipped via Australia Post. Starting at $8 for 500g. View our Shipping Rates and Policy
Spend $150+ and get FREE Shipping
Local Australian Stock, Shipped Same Day!
Flexible returns

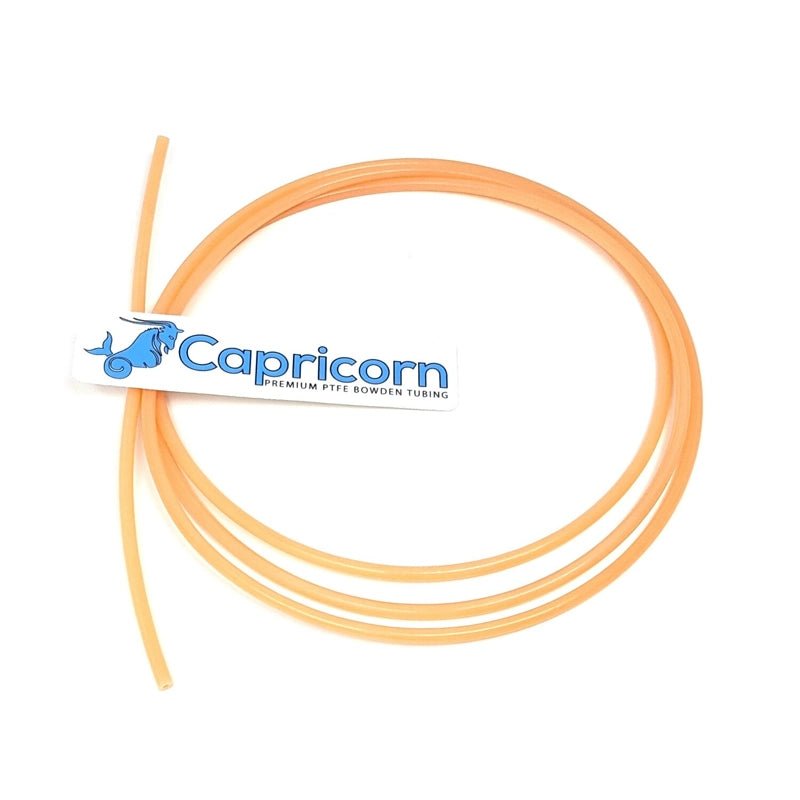

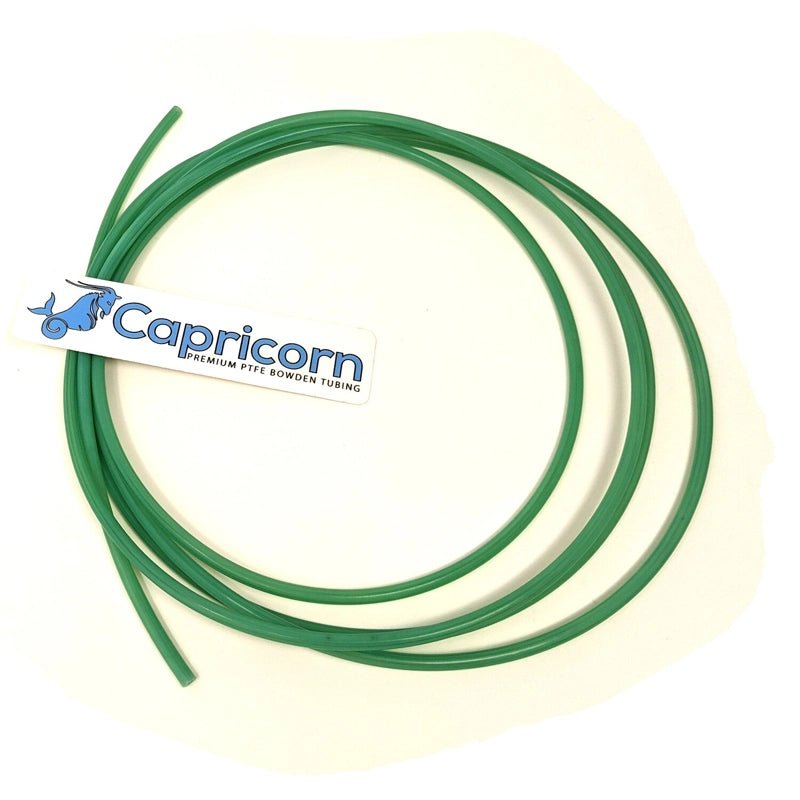

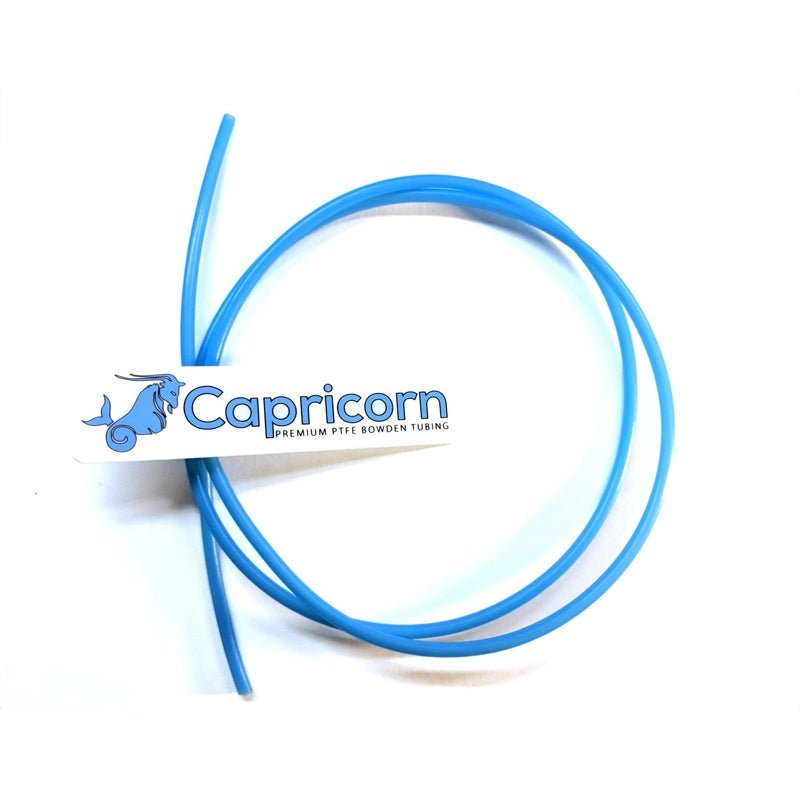

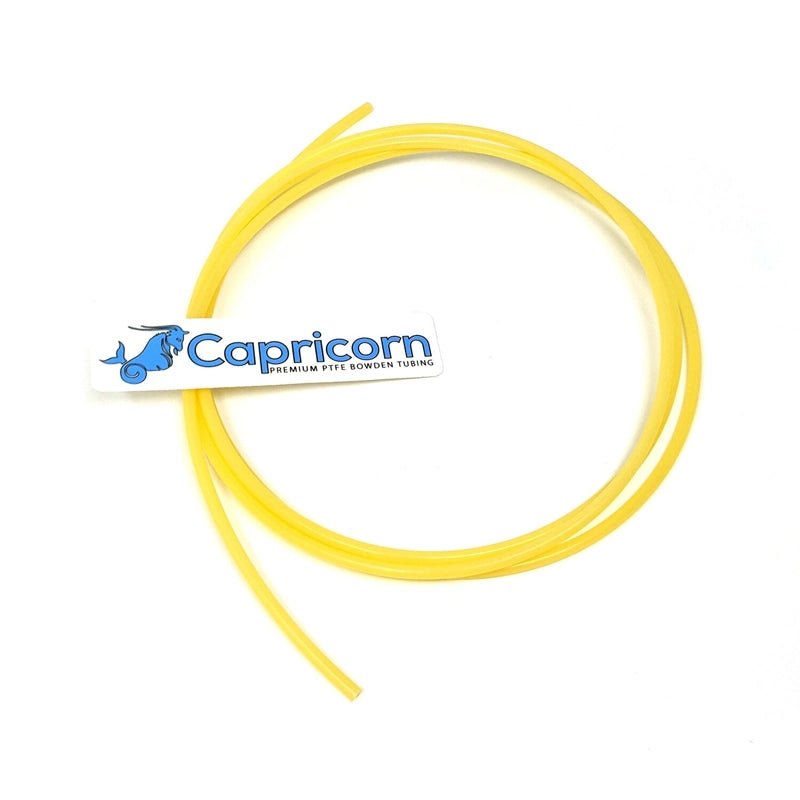

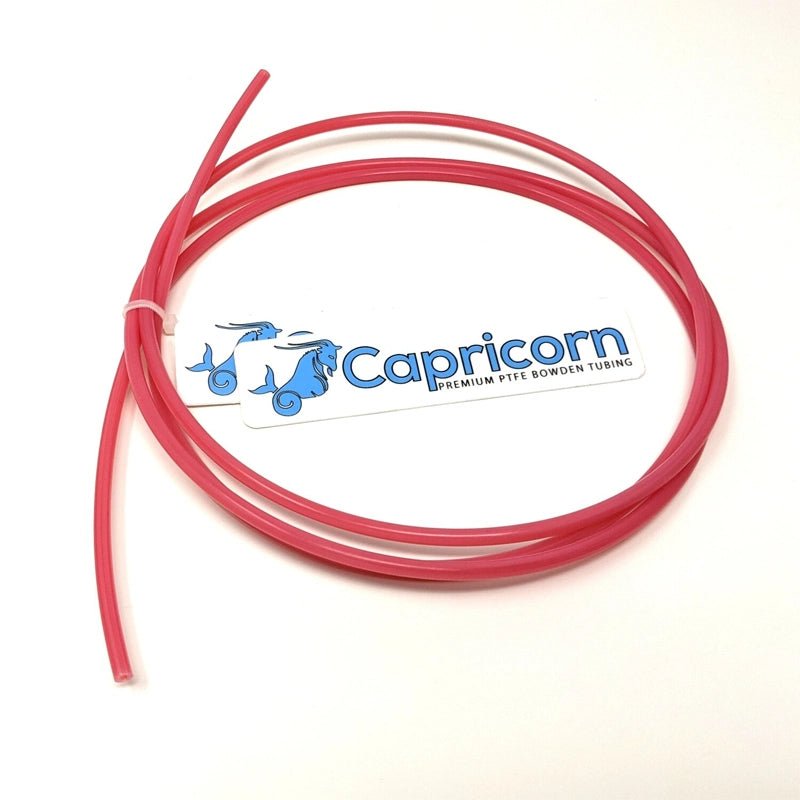

One meter of Capricorn translucent PTFE tubing. 2mm inner, 4mm outer diameter for 1.75mm filaments. Available in a variety of colours.
This translucent tubing is produced from the finest pure virgin transparent PTFE. Guarantee to always be the right diameter and perfectly round.
Each meter of tubing comes with one Capricorn sticker to decorate your printer.
Specifications
Best For Chunky Filaments: YES
Best For Flexible Filaments: NO
Can See Through: YES
Pulling Friction: 0.8
Density (kg/m3): 2100 +/-100
Hardness: 55
Inner Diameter (mm): 2.05 +/- 0.05
Linear Thermal Expansion at 250 °C: 3.4-3.6%
Material: Highest Quality Pure Virgin PTFE
Melting Point (°C): Around 300
Outer Diameter: 3.95 +/- 0.05
Roundness (ϵ): < 0.1
Stiffness: Medium
Thermal Conductivity (W/m-k): 0.25
Wear Rate (gm/s)0.01Young's Modulus (GPa): 0.5
Package Contents
1 meter of Capricorn TL series tubing in the selected colour. We sell per the meter, meaning if you order 2 meters you will receive a 2meter length and not 2x 1m lengths.
