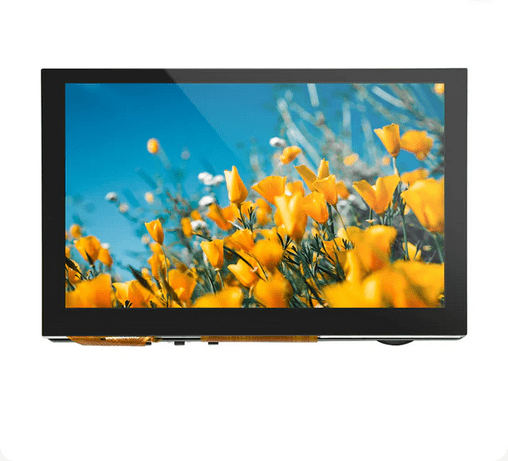

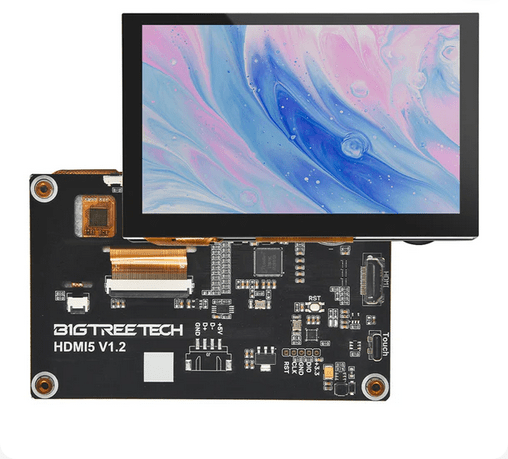

The BIGTREETECH HDMI5 Display is a premium 5-inch touchscreen solution specifically engineered for 3D printer enthusiasts running Klipper firmware systems. This versatile display combines professional-grade IPS technology with intuitive touch controls, delivering an enhanced user interface for real-time print monitoring and system control. Designed by BIQU's technical team, the HDMI5 seamlessly integrates with popular single-board computers including Raspberry Pi 4, BTT Pi, and various Manta series motherboards with CB1/CB2 modules.
The display features true plug-and-play functionality, requiring no driver installation for most systems, making setup effortless for both beginners and experienced makers. With its crisp 800×480 resolution, wide 160° viewing angle, and responsive 5-point capacitive touch support, the HDMI5 provides exceptional visual clarity and smooth interaction. The integrated audio decoding circuit with 3.5mm headphone jack output, adjustable brightness controls, and 180° display rotation capability make it a comprehensive display solution for any 3D printing workstation or DIY project.
Key Features:

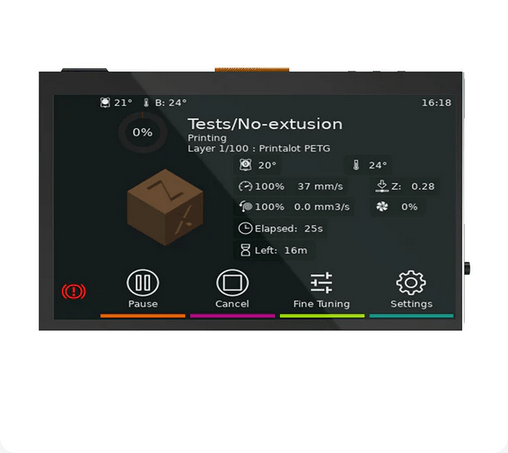

Klipper-Optimized Design: Specifically developed for 3D printer users running Klipper firmware, providing seamless KlipperScreen integration and enhanced printing workflow control.
Universal Compatibility: Works with Raspberry Pi 4/3B, BTT Pi V1.2/Pi 2, CB1/CB2 modules, Manta series motherboards (M4P/M5P/M8P), and standard PCs via HDMI connection.
Premium IPS Display Technology: 5-inch IPS capacitive touchscreen with 800×480 resolution and 160° wide viewing angle for crisp, clear visuals from any angle.
Advanced Touch Capabilities: Supports up to 5-point simultaneous touch input for smooth, responsive multi-touch gestures and precise control.
True Plug-and-Play Setup: No driver installation required for most systems - simply connect via HDMI and USB-C power for instant functionality.
Integrated Audio Solution: Built-in audio decoding circuit with 3.5mm headphone jack for complete multimedia output capabilities.

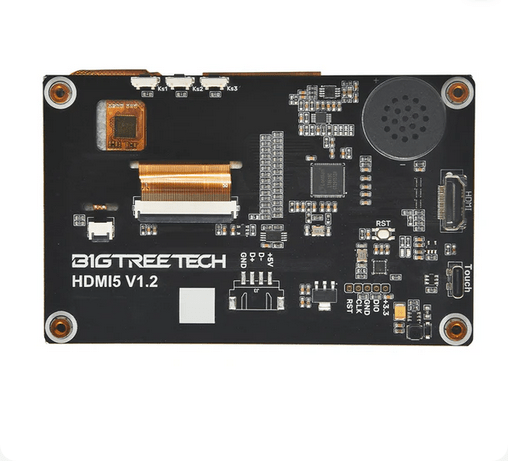

Hardware Control Buttons: Physical buttons for brightness adjustment (Ks1/Ks3) and 180° display rotation (Ks2) for optimal viewing in any orientation.
Professional Build Quality: Compact 121×76mm footprint with robust construction designed for continuous operation in workshop environments.
Visual Status Indicators: Built-in LED indicators for power status (red) and operational status (green) for quick system health monitoring.
Specifications:
Display Technology: 5-inch IPS LCD capacitive touchscreen
Resolution: 800×480 pixels
Viewing Angle: 160° wide viewing angle
Touch Support: Up to 5-point simultaneous touch input
Product Dimensions: 121×76mm (mounting size: 121×76mm)
Power Requirements: DC 5V via USB-C connector
Logic Voltage: DC 3.3V
Video Input: HDMI interface
Audio Output: 3.5mm headphone jack with built-in decoding circuit
Control Buttons: 3 physical buttons (Ks1: Brightness+, Ks2: Display rotation, Ks3: Brightness-)
Status Indicators: Power LED (red), Status LED (green)
Compatible Systems: Raspberry Pi 4/3B, BTT Pi V1.2/Pi 2, CB1/CB2, Windows 10/8/7, Linux, macOS
Printer Board Compatibility: SKR Mini E3 V3.0, SKR V1.4 Turbo, SKR 3, Octopus series, Manta M4P/M5P/M8P, Kraken, and other Klipper-compatible boards
Firmware Support: Optimized for Klipper with KlipperScreen, also supports standard HDMI display protocols
Operating Temperature: Standard electronics operating range

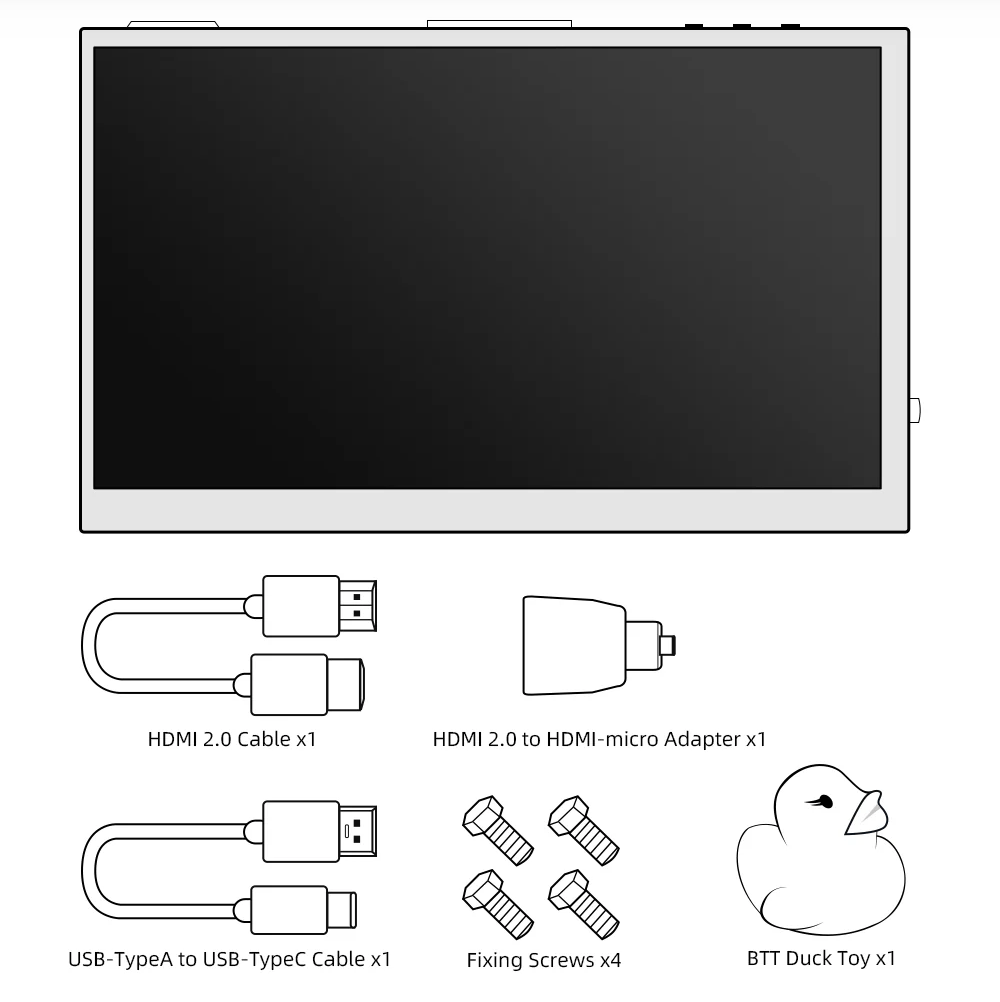

Included Accessories: HDMI5 display unit, USB-C power/data cable, HDMI cable, mounting hardware
