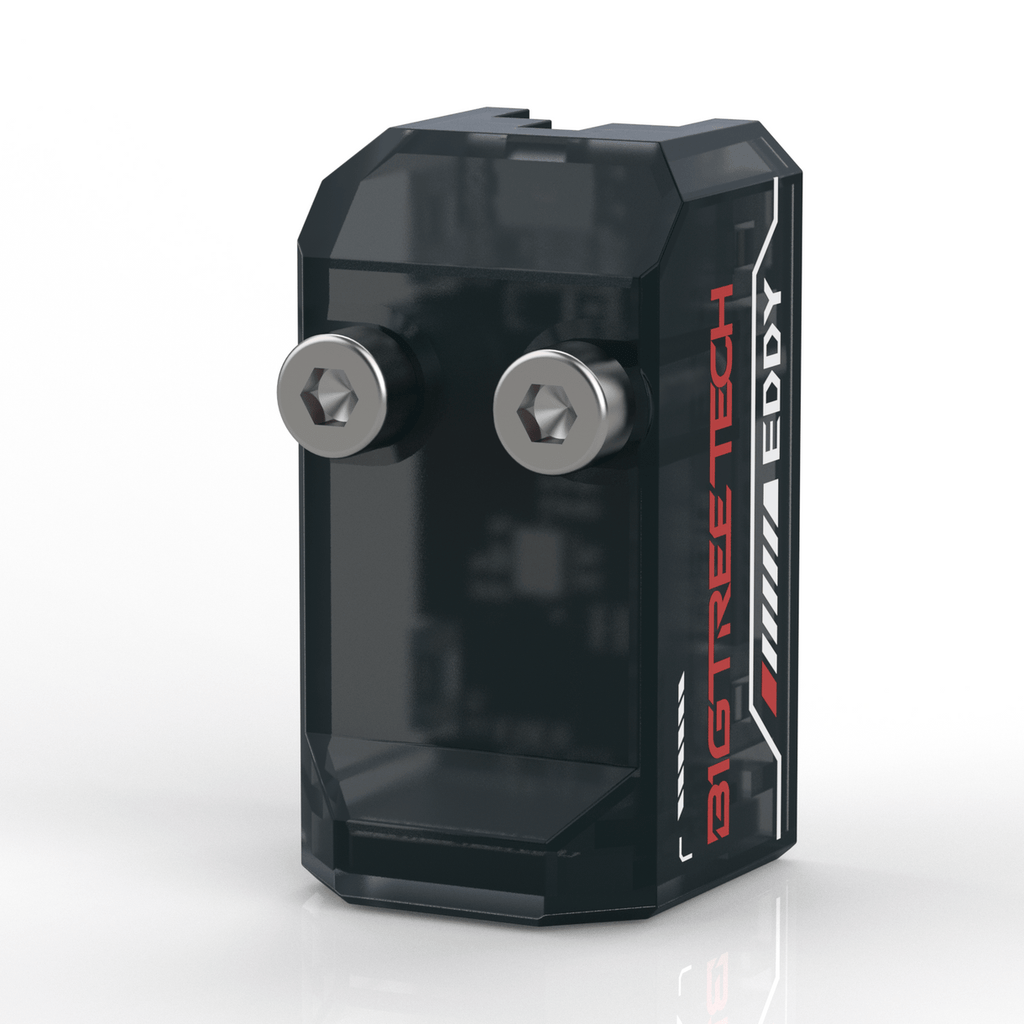

BIGTREETECH Eddy Duo
$9.75 Flat Rate Shipping.
Spend $100+ and get FREE Shipping
Local Australian Stock, Shipped Same Day!
Flexible returns
The BIGTREETECH Eddy Duo Auto Bed Leveling Sensor is a high-speed, non-contact leveling solution designed for Klipper-based 3D printers. Utilizing eddy current scanning technology, it delivers rapid and precise bed leveling, significantly enhancing print quality and reducing setup time.
With dual communication modes—USB and CAN—the Eddy Duo offers flexible integration options, making it compatible with a wide range of 3D printers, including Voron, VZBot, BIQU Hurakan, and Ender series. Its lightweight design and compact form factor ensure minimal impact on the printer's motion system.
Key Features:

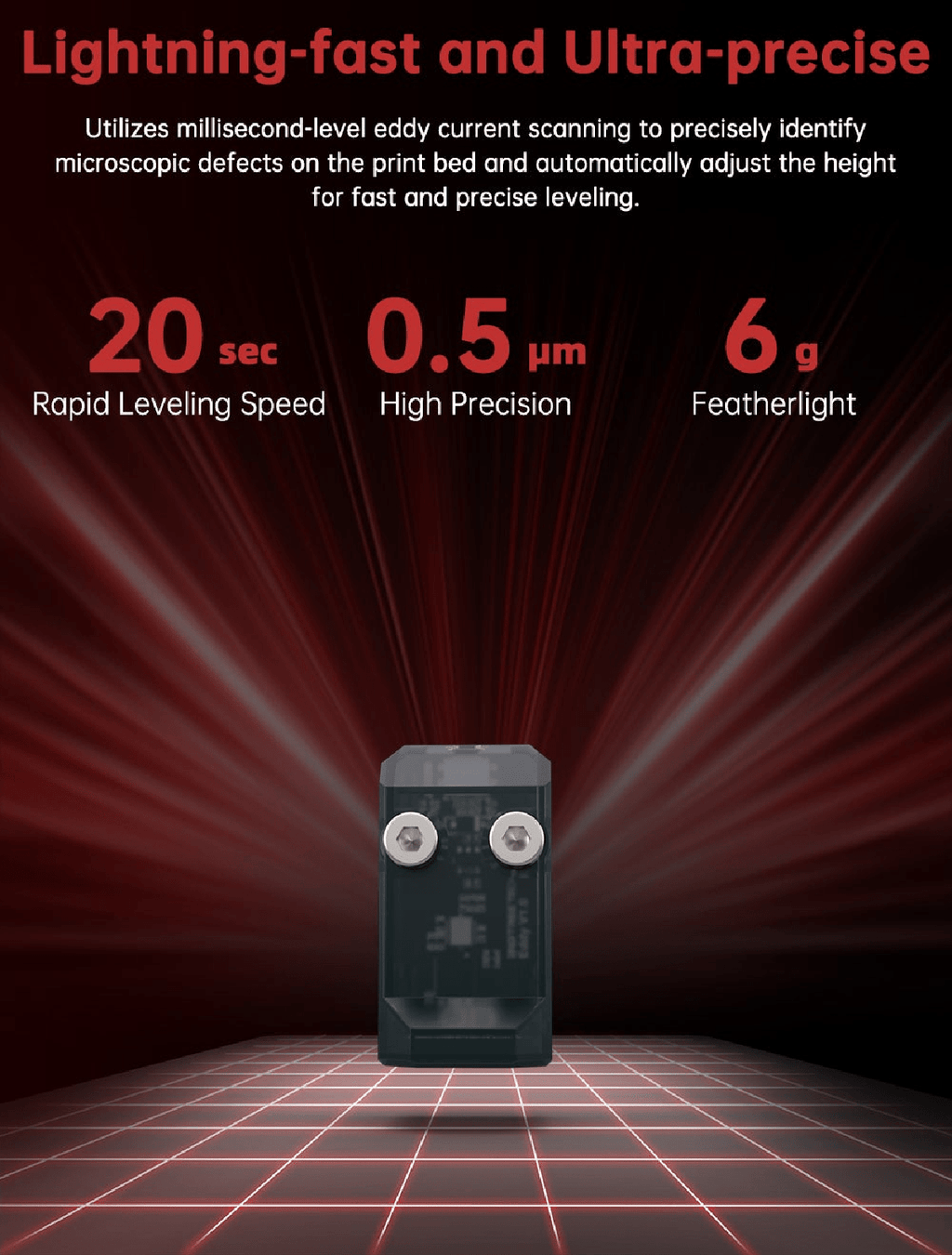

High-Speed Leveling: Completes bed leveling in approximately 20 seconds, 6 to 9 times faster than traditional sensors.
Ultra-Precise Measurements: Achieves a precision of up to 0.0005 mm, ensuring consistent first-layer quality.
Dual Communication Modes: Easily switch between USB and CAN interfaces using the onboard dip switch for versatile connectivity.

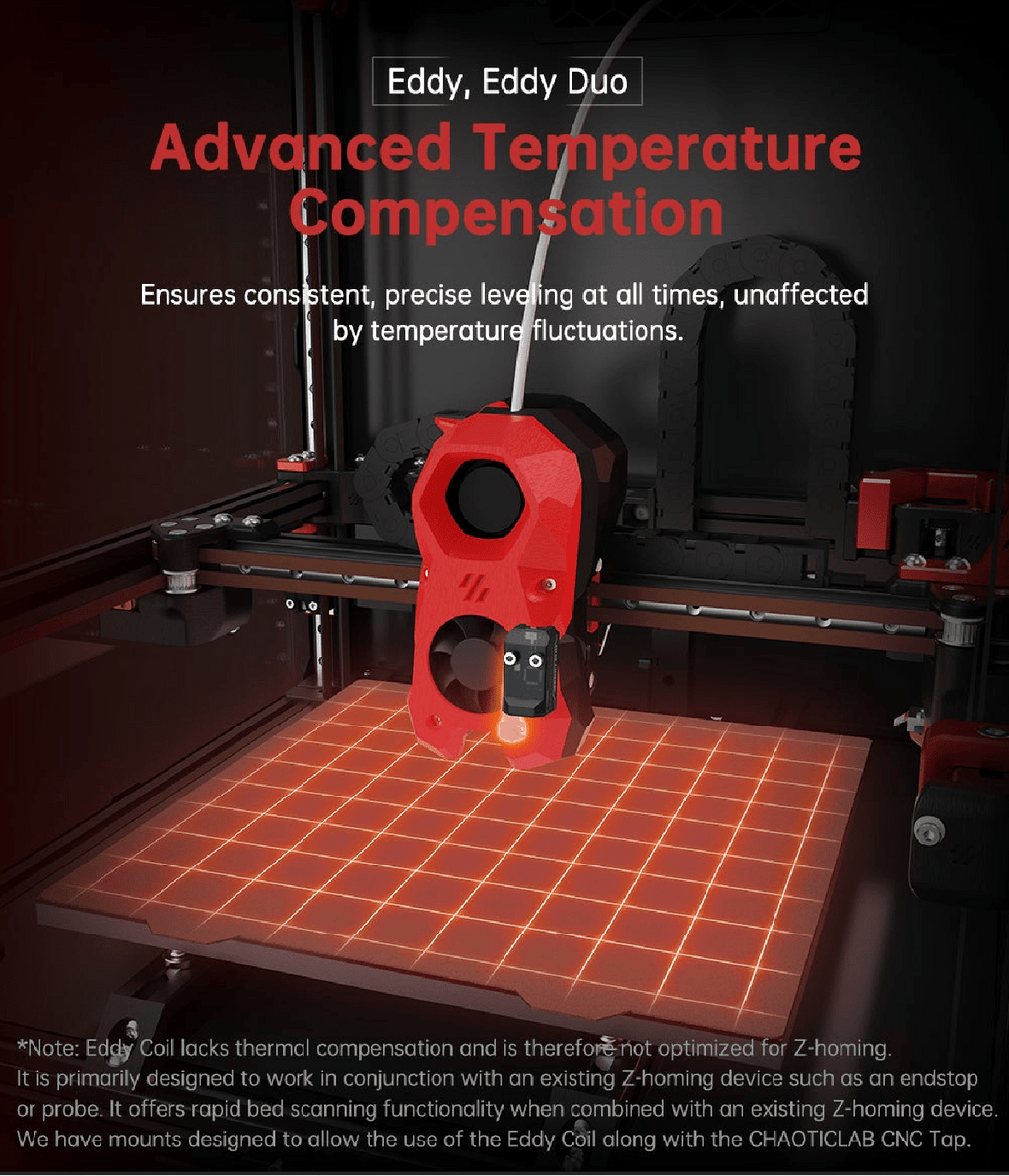

Temperature Compensation: Built-in compensation accounts for temperature fluctuations, maintaining leveling accuracy.

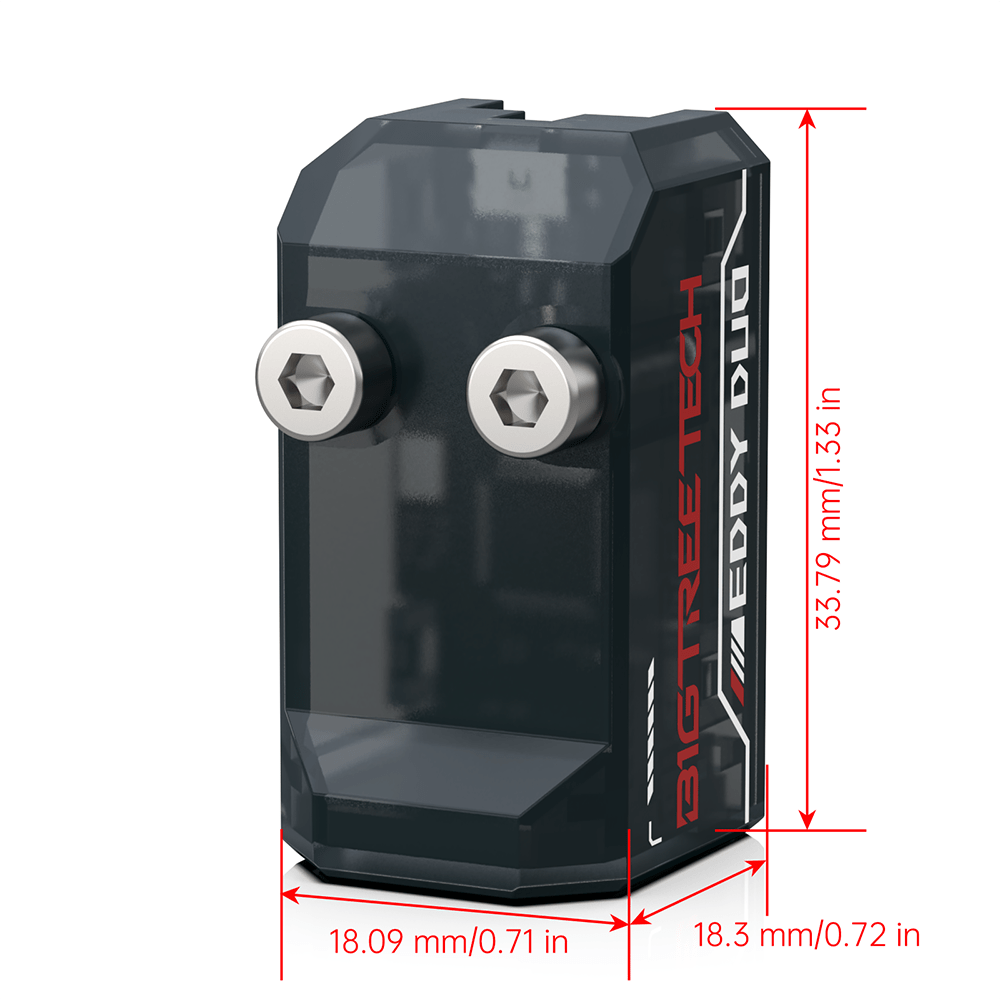

Lightweight Design: Weighing only 6 grams, it minimizes inertia and is suitable for high-speed printing applications.

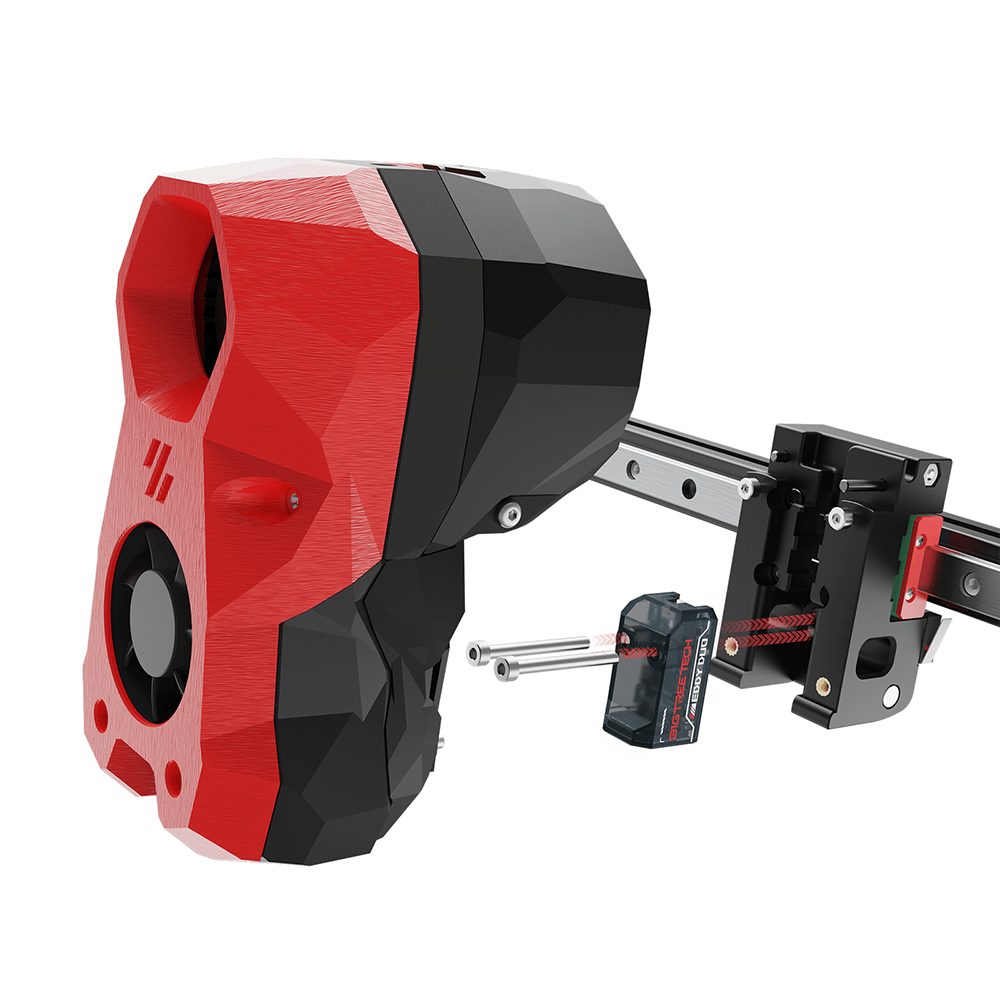

Wide Compatibility: Compatible with various 3D printer models and supports mounting at standard probe locations like TL-Q5MC/PL-08N.

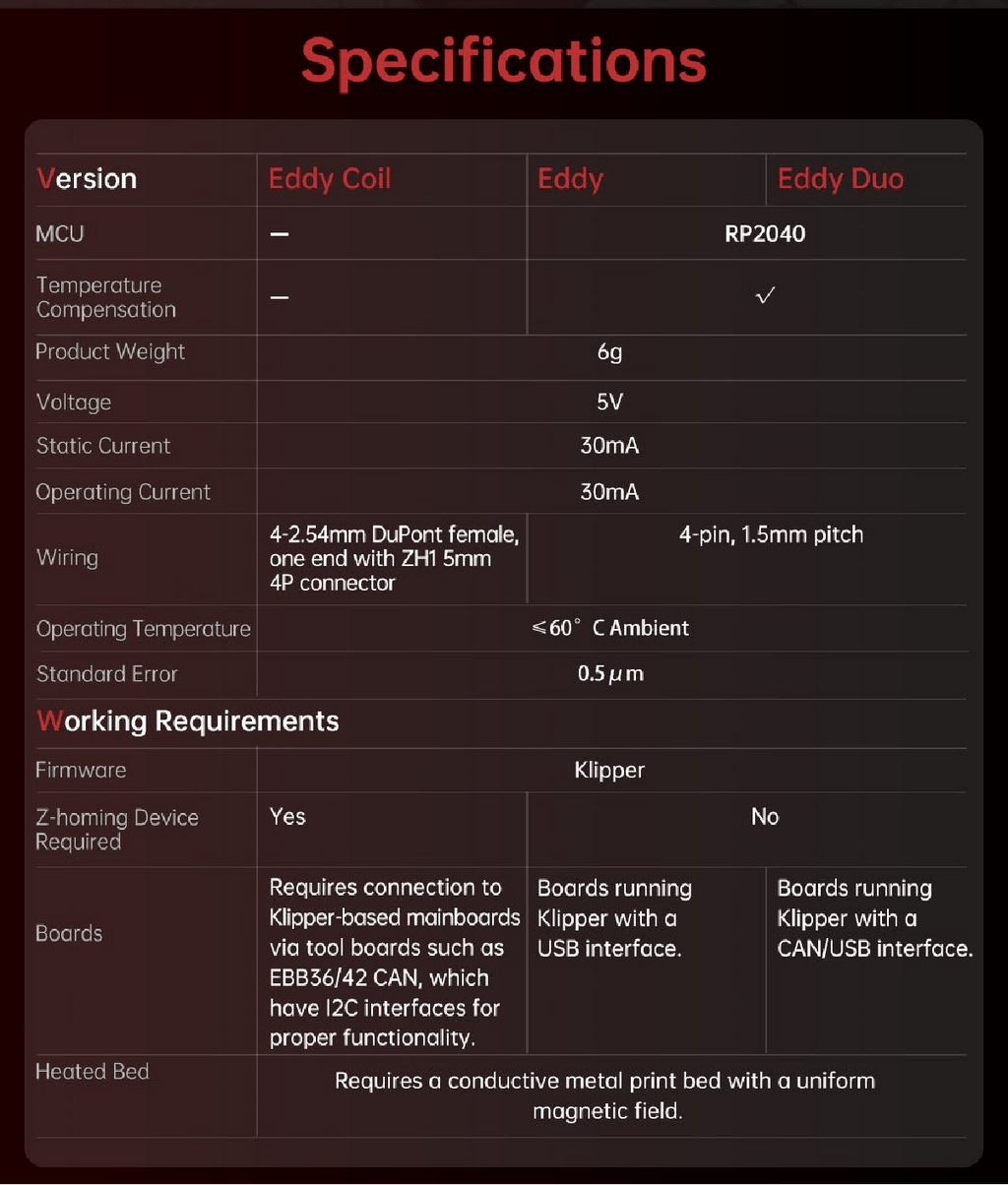

Specifications:
Model: Eddy Duo
Weight: 6g
Voltage: 5V
Static Current: 30mA
Operating Current: 30mA
Cable Length: 2.5 m (USB Version), 15 cm (CAN Version)
Connection: 4-pin, 1.5mm pitch
Operating Temperature: ≤60℃
Precision: 0.0005 mm
Compatibility: Klipper firmware only
Mounting Height: 2–3 mm above the nozzle
