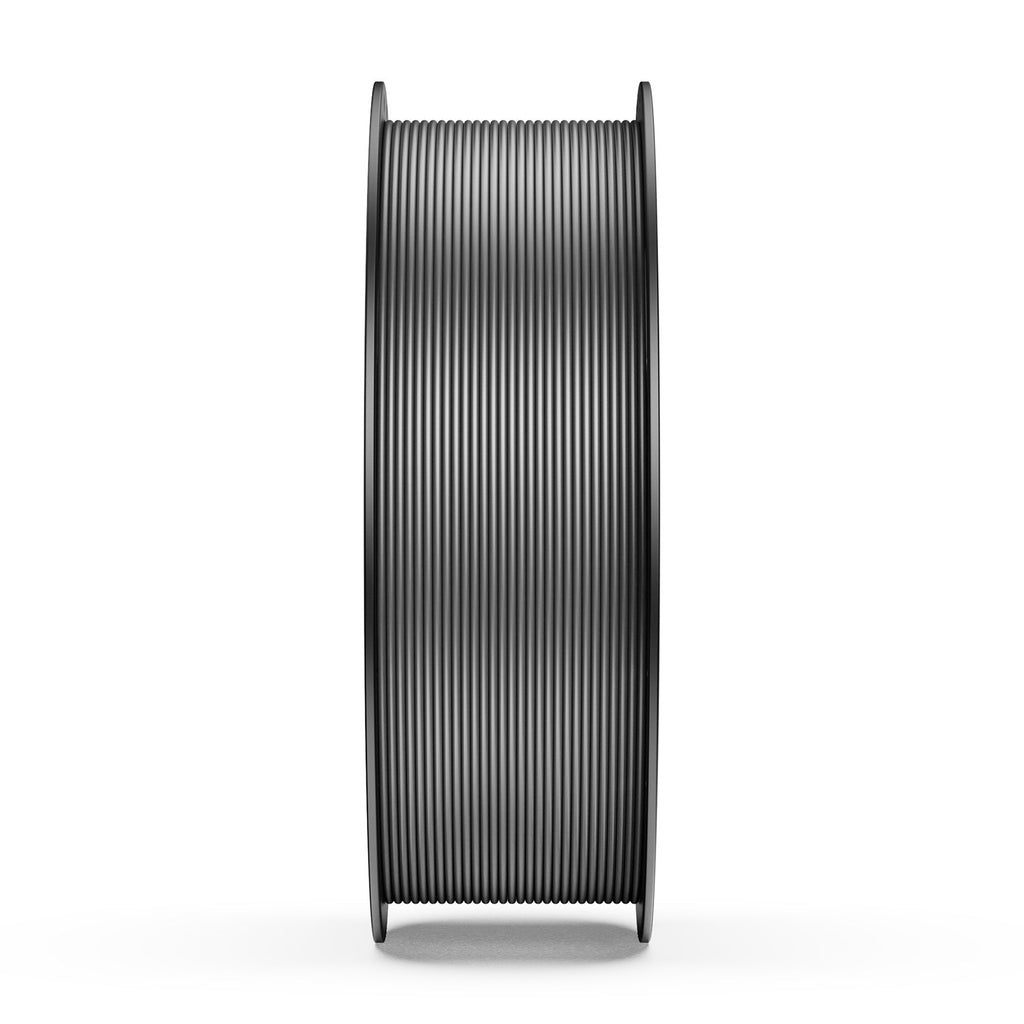

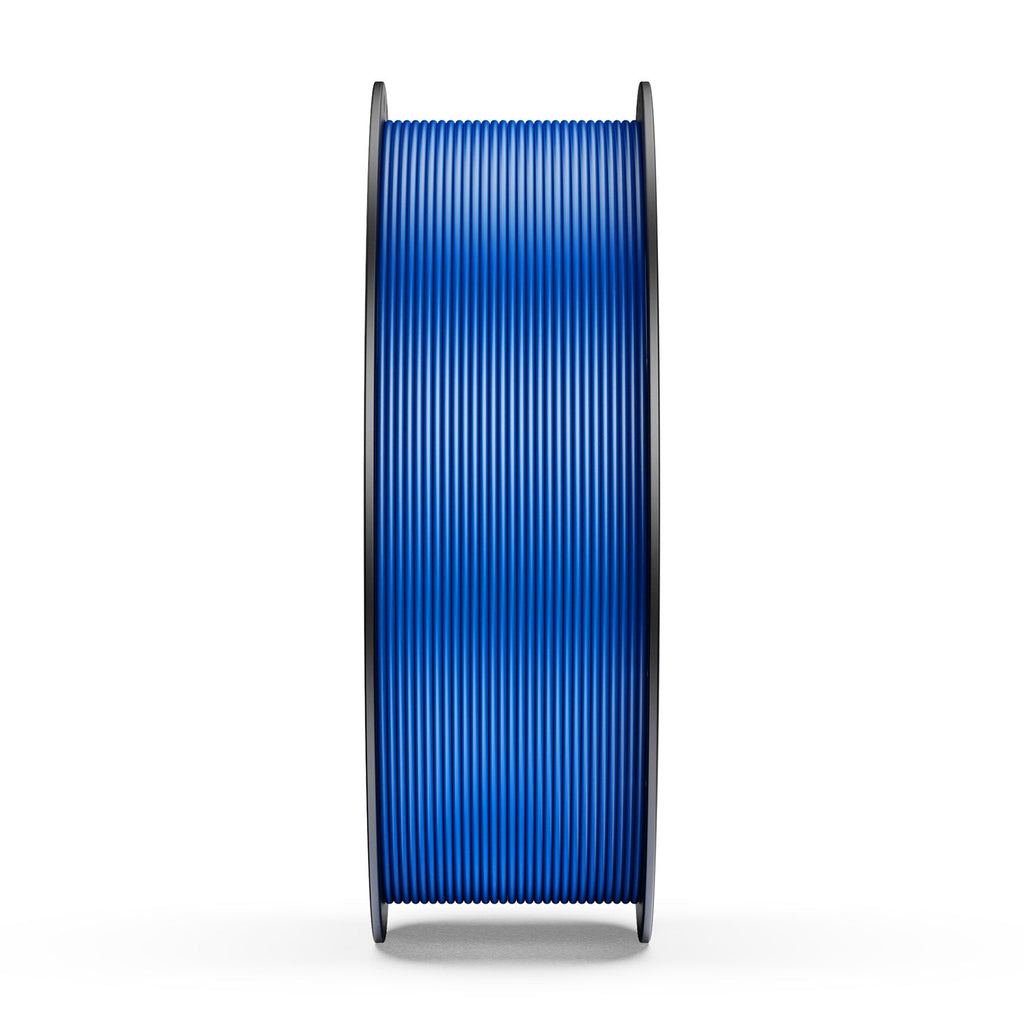

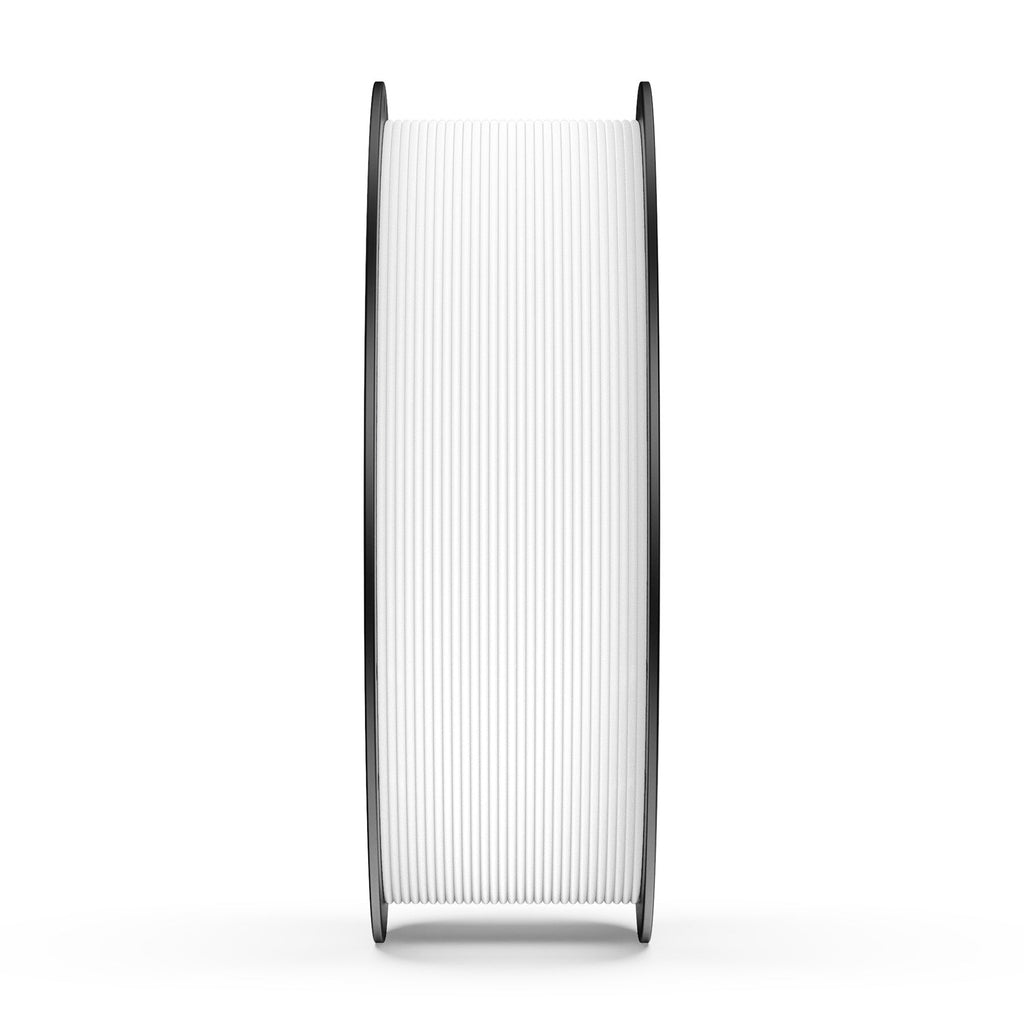

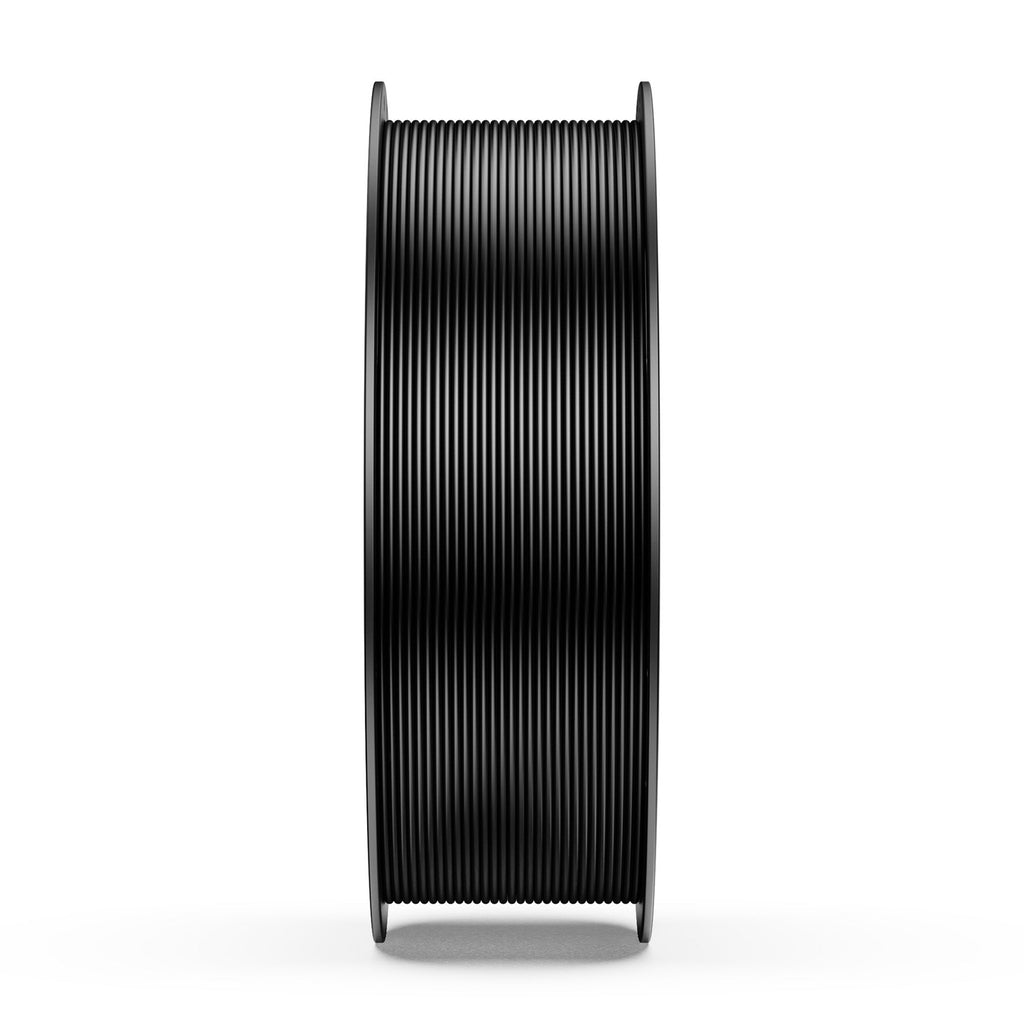

VEXA ASA 1.75mm Filament 1kg Spool
Black
$26.95
VEXA ASA 1.75mm Filament 1kg Spool
$26.95
Pickup available at Gold Coast, Queensland. (Check Pickup Hours)
Usually ready in 2 hours
Order before 3pm for same-day dispatch via Australia Post. 2-5 business days to most of Australia. Shipping rates and policy
Free shipping on orders over $120 (excluding 3D printers)
VEXA ASA is an engineering-grade filament designed for outdoor applications where UV resistance and weatherability are critical. Unlike ABS, which degrades and yellows in sunlight, ASA maintains its colour, strength, and mechanical properties even after prolonged outdoor exposure — making it the go-to material for garden equipment, outdoor signage, automotive parts, and weatherproof enclosures. With exceptional impact strength (19.6 kJ/m² notched), a heat deflection temperature of 100°C, and excellent resistance to acids and alkalis, VEXA ASA delivers professional-grade performance for demanding functional applications.
Key Features
- Exceptional UV resistance — maintains colour and strength in direct sunlight
- Superior weather resistance for long-term outdoor use
- High impact strength — 19.6 kJ/m² notched, 41.0 kJ/m² unnotched
- Excellent heat resistance — 100°C heat deflection temperature
- Good chemical resistance to acids and alkalis
Specifications
- Material: ASA (Acrylonitrile-Styrene-Acrylate copolymer)
- Filament Diameter: 1.75mm
- Net Weight: 1kg
- Density: 1.05 g/cm³
- Tensile Strength: 37 MPa (X-Y) / 31 MPa (Z)
- Young's Modulus: 2450 MPa (X-Y) / 2120 MPa (Z)
- Elongation at Break: 9.2% (X-Y) / 4.6% (Z)
- Flexural Strength: 65 MPa (X-Y) / 40 MPa (Z)
- Flexural Modulus: 1920 MPa (X-Y) / 1650 MPa (Z)
- Impact Strength (Unnotched): 41.0 kJ/m² (X-Y) / 4.9 kJ/m² (Z)
- Impact Strength (Notched): 19.6 kJ/m² (X-Y)
- Heat Deflection Temp: 100°C (0.45 MPa) / 92°C (1.8 MPa)
- Vicat Softening Temp: 106°C
- Melting Temperature: 210°C
- Melt Flow Index: 7.0 g/10min (260°C/2.16kg)
- Water Absorption: 0.45% (25°C, 55% RH)
- Flammability: Flammable
Recommended Print Settings
- Nozzle Temperature: 240–270°C
- Bed Temperature: 80–100°C
- Chamber Temperature: 45–60°C (enclosed printer recommended)
- Build Plate: Engineering plate, high-temp plate, or textured PEI
- Bed Adhesive: Glue recommended
- Cooling Fan: 0–80%
- Print Speed: Up to 250mm/s
- Retraction Distance: 0.8–1.4mm
- Retraction Speed: 20–40mm/s
- Max Overhang Angle: ~70°
- Max Bridging Length: ~40mm
Drying & Storage
- Drying (Blast Oven): 80°C for 8 hours
- Drying (Printer Heatbed): 90–100°C for 12 hours
- Storage Humidity: Below 20% RH, sealed with desiccant
- Annealing (Optional): 80–90°C for 6–12 hours for maximum performance
Ideal For
- Outdoor signage, garden equipment, and mailboxes
- Automotive parts and exterior trim pieces
- Weatherproof enclosures and housing
- Structural components requiring UV stability
Chemical Resistance
- Acids: Resistant
- Alkalis: Resistant
- Water: Insoluble
- Organic Solvents: Not Resistant
- Oil and Grease: Not Resistant
Important Notes
- Enclosed Printer Recommended: ASA prints best with a heated chamber (45–60°C) to prevent warping and layer splitting
- Ventilation Required: Print in a well-ventilated area — ASA releases fumes during printing
- Bed Adhesive: Use glue stick or Bambu Lab glue for reliable first-layer adhesion
- Moisture Sensitive: Dry filament before use if exposed to humidity for extended periods
When your prints need to survive the Australian sun, VEXA ASA delivers. It's the material of choice for outdoor applications where standard plastics would fade, crack, or degrade — giving you functional parts that look and perform like new, year after year.
