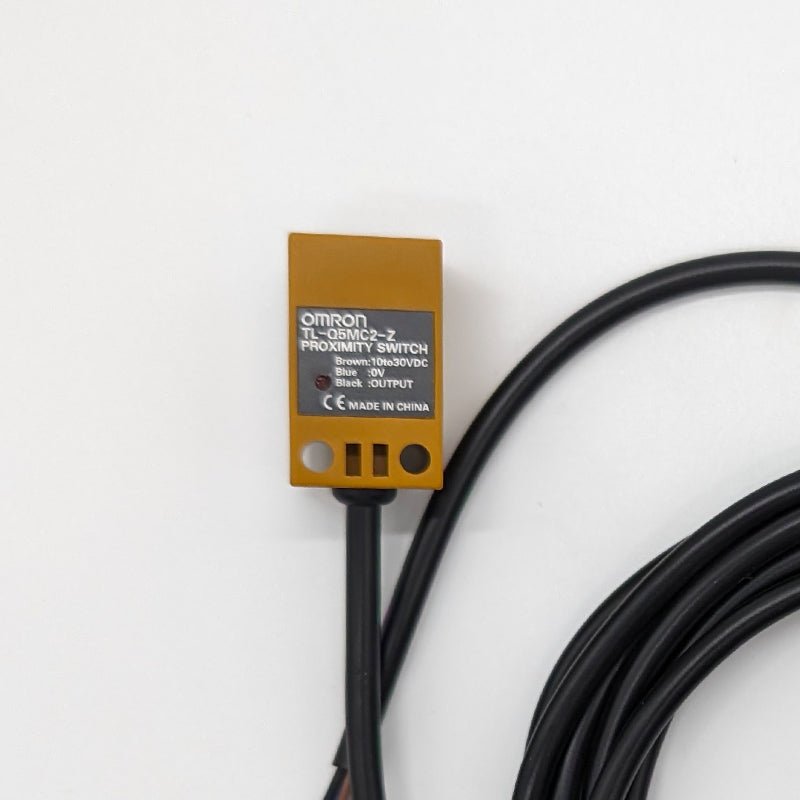

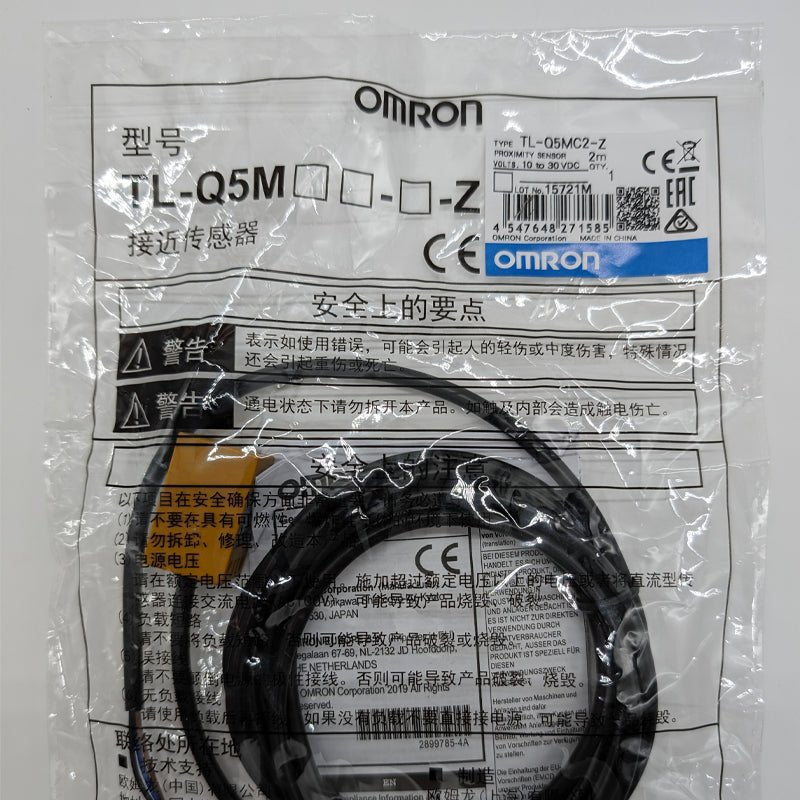

Omron TL-Q5MC2-NPN NC Inductive Proximity Sensor Probe

Price
$14
Tax included and shipping calculated at checkout
Only 2 left in stock!
American Express
Apple Pay
Google Pay
Mastercard
PayPal
Shop Pay
Visa

Product information


The Omron TL-Q5MC2-NPN NC Inductive Proximity Sensor Probe is a high-quality sensor designed for precision and reliability in various applications, including 3D printers like the Voron 2.4 using the stealthburner tool head. This sensor is capable of detecting metallic objects without physical contact, providing an accurate and non-intrusive method for position sensing. The NPN NC (Normally Closed) configuration ensures that the sensor outputs a signal when no metallic object is present, making it suitable for various automation and safety applications. Its robust design and reliable performance make it an excellent choice for demanding environments.

Specifications:

  • Model: TL-Q5MC2-NPN NC
  • Sensing Method: Inductive
  • Output Type: NPN Normally Closed (NC)
  • Sensing Distance: 5mm
  • Operating Voltage: 10-30V DC
  • Current Consumption: < 10mA
  • Output Current: 200mA max
  • Response Frequency: 500Hz
  • Operating Temperature: -25°C to 70°C
  • Cable Length: Typically 2 meters
  • Housing Material: Durable plastic for industrial use
  • Dimensions: 34mm x 17mm x 8mm

Key Attributes:

  • High Precision Detection: Accurately senses metallic objects within a 5mm range.
  • Non-Contact Sensing: Reduces wear and tear, increasing the lifespan of the sensor.
  • Robust Design: Suitable for industrial environments and demanding applications.
  • Reliable Performance: Consistent and stable output for automation tasks.
  • Easy Integration: Compatible with various 3D printers, including the Voron 2.4.

The Omron TL-Q5MC2-NPN NC inductive proximity sensor is highly regarded for its precision and reliability, making it a popular choice for use in custom and DIY 3D printer builds beyond just the Voron series. While it is not commonly found as a stock component in major brand 3D printers, it can be integrated into a variety of 3D printers with the appropriate modifications.
