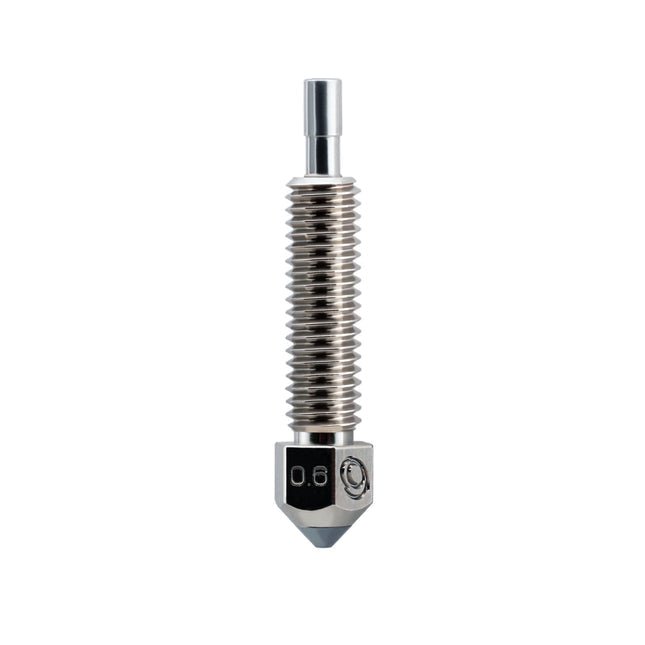

Micro Swiss FlowTech CHT High Flow - CM2™ Nozzle

The Micro Swiss FlowTech™ CHT High Flow - CM2™ Nozzle is a premium upgrade for the FlowTech ecosystem, developed in collaboration with Bondtech. This nozzle integrates proprietary CHT (Core Heating Technology) to enhance filament flow rate, making it ideal for high-speed and high-temperature 3D printing applications.

Constructed with a core of high-temperature Copper Chromium Zirconium alloy and plated with Electroless Nickel, the nozzle maintains strength at elevated temperatures. The tip is made of M2 Hardened High-Speed Steel, coated with a WS2 nonstick nano coating, ensuring durability and reduced friction during printing.

Key Features:

High-Temperature Core: Copper Chromium Zirconium body retains strength at high temperatures, suitable for demanding printing tasks.

Durable Tip: M2 Hardened High-Speed Steel insert with WS2 nonstick nano coating provides wear resistance and smooth filament flow.

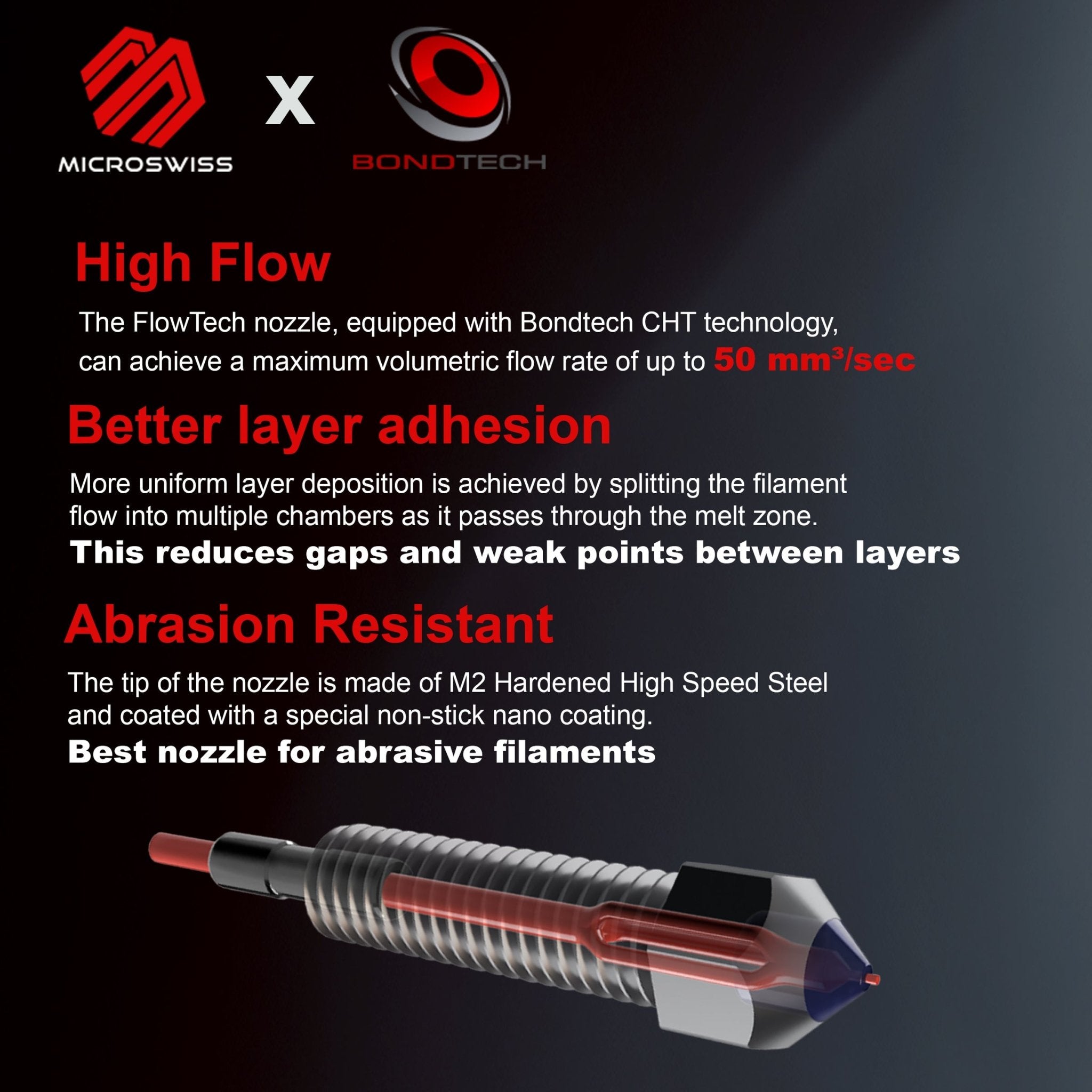

CHT Technology: Proprietary Core Heating Technology allows for a maximum volumetric flow rate of up to 50 mm³/sec, enabling faster printing speeds.

Enhanced Layer Adhesion: Multi-channel filament flow design promotes uniform layer deposition, reducing gaps and weak points between layers.

Compatibility: Designed for use with Micro Swiss FlowTech™ Hotends, ensuring seamless integration and optimal performance.

Specifications:

Material: Copper Chromium Zirconium body with Electroless Nickel Plating; M2 Hardened High-Speed Steel tip with WS2 coating

Orifice Sizes Available: 0.4mm, 0.6mm, 0.8mm, 1.0mm

Filament Diameter: 1.75mm

Maximum Operating Temperature: 450°C

Coefficient of Friction: 0.035

Hardness: 68 HRC (heat-treated)

Manufacturing Origin: Made in Sweden by Bondtech; Assembled in the USA by Micro Swiss
