Micro Swiss All Metal Hotend With Slotted Cooling Block For Duplicator 6

Sale price
$50
Regular price
$82
You save
39%
Tax included and shipping calculated at checkout
Only 1 left in stock!
American Express
Apple Pay
Google Pay
Mastercard
PayPal
Shop Pay
Visa

Product information

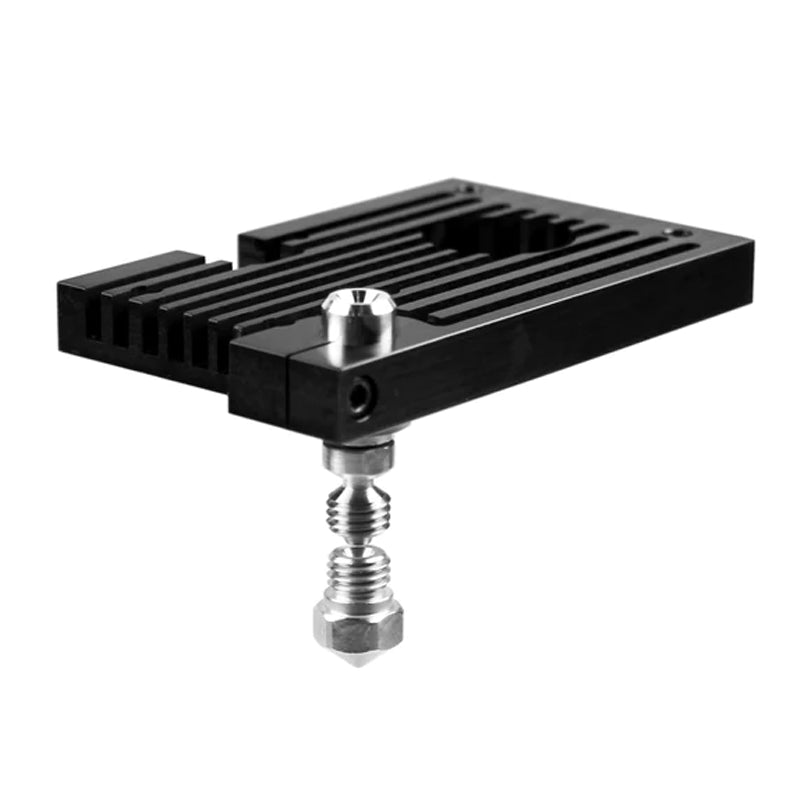

This is Micro Swiss All Metal Hotend kit with redesigned cooling block for Wanhao i3, Wanhao i3 Plus and all other i3 clones with the following improvements:

Slotted Clamping system
No set screw to ding and damage thermal tube
Significantly better heat transfer (this is a big one!!!)
Easier disassemble and adjustments
Precise control on bore diameter

Micro Swiss All Metal Hotend Kit Features:

This upgrade includes a modified thermal barrier tube and modified nozzle with modified cooling block. Thermal barrier tube is made from 2 different materials. The lower thermal break is made from stainless steel, and the colder upper part is made from aluminum. Stainless steel was used for thermal break because it offers low thermal conductivity, and aluminum was used for the upper portion because it has a lot better thermal conductivity, to carry away any heat from the filament. All metal hotend will let you print at much higher temperature than possible with original PTFE lined one. Another benefit of an all metal hotend design is more consistent melt chamber control. During slow extrusion rate, in PTFE lined hotend, transition zone from solid to molten plastic tends to creep upward creating more stringy prints. With all metal design a transition zone is always constant, being located right at the heat break. With fast extrusion rate, PTFE tube doesn't have enough thermal conductivity to properly melt all the plastic coming out. On original extruders that limitation happens around 60 mm/s, depending on nozzle size. All metal hotend solves this problem, plastic is surrounded by thermally conductive nozzle throughout its length.

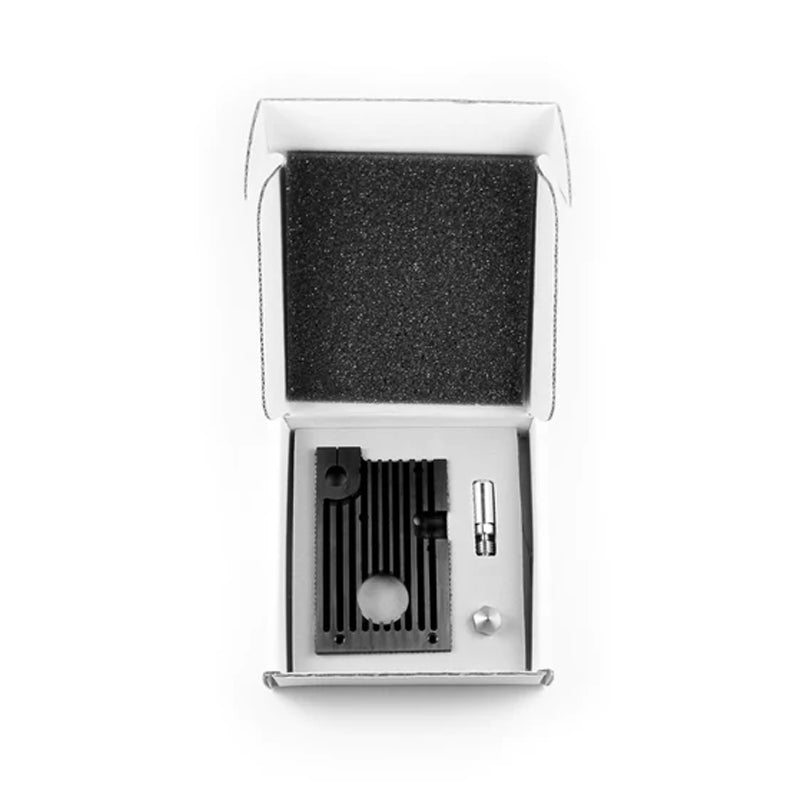

Package Contents

1x Plated Brass Wear Resistant Nozzle (.4mm)
1x Thermal tube
1x Slotted Cooling block

Adaptation Models

WANHAO Duplicator 6, Monoprice Maker Ultimate 3D Printer
