Home > > LDO-36STH20-1004AHG 36mm Pancake Stepper Motor

Product information

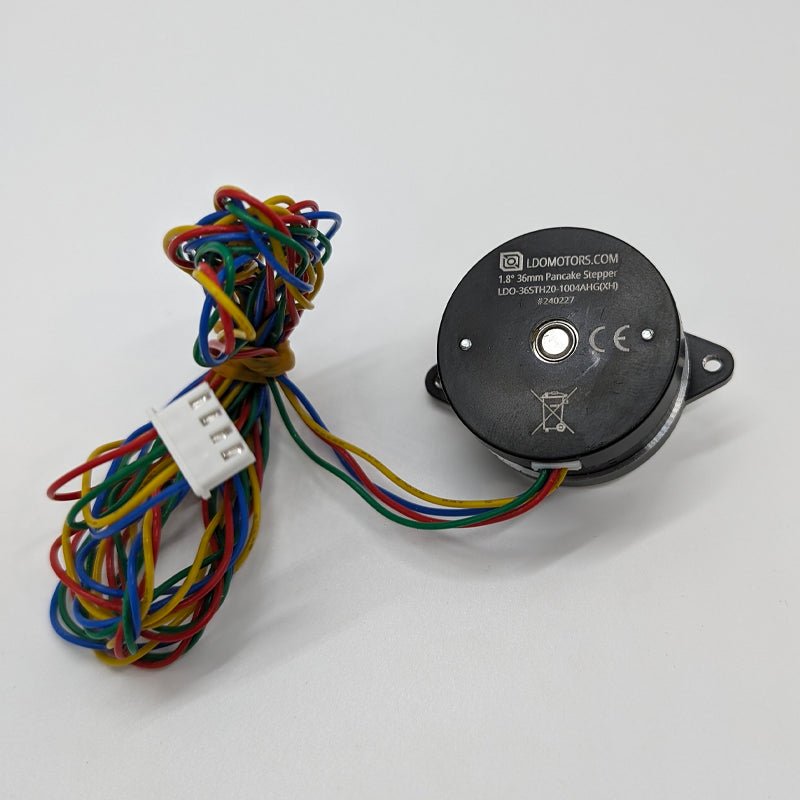

The LDO-36STH20-1004AHG is a compact and efficient 36mm pancake stepper motor, designed to deliver high torque and precision in a small form factor. This stepper motor is ideal for use in 3D printers, CNC machines, robotics, and other applications where space is limited but performance is crucial. With its robust construction and reliable performance, the LDO-36STH20-1004AHG ensures smooth and accurate motion control.

Specifications:

  • Model: LDO-36STH20-1004AHG
  • Frame Size: 36mm (pancake style)
  • Step Angle: 1.8 degrees per step
  • Holding Torque: Approximately 12Ncm (17oz.in)
  • Rated Current: 1.0A per phase
  • Voltage: 4.0V
  • Resistance: 4.0 Ohms per phase
  • Inductance: 2.8mH ± 20% (1kHz)
  • Lead Wires: 4
  • Motor Length: 20mm
  • Shaft Diameter: 5mm
  • Shaft Length: 22mm
  • Weight: Approximately 130g
  • Mounting Holes: M3 threaded

Key Attributes:

  • Compact Design: 36mm frame size ideal for applications with limited space.
  • High Precision: 1.8-degree step angle for accurate motion control.
  • Strong Torque: Provides holding torque of approximately 12Ncm, suitable for various applications.
  • Durable Construction: Built with high-quality materials for long-lasting performance.
  • Versatile Use: Perfect for 3D printers, CNC machines, robotics, and other precision equipment.
