E3D V6 Nozzle X

Tax included and shipping calculated at checkout
Orifice Size:
0.25mm for 1.75mm Filament
Only 3 left in stock!
American Express
Apple Pay
Google Pay
Shop Pay

Product information

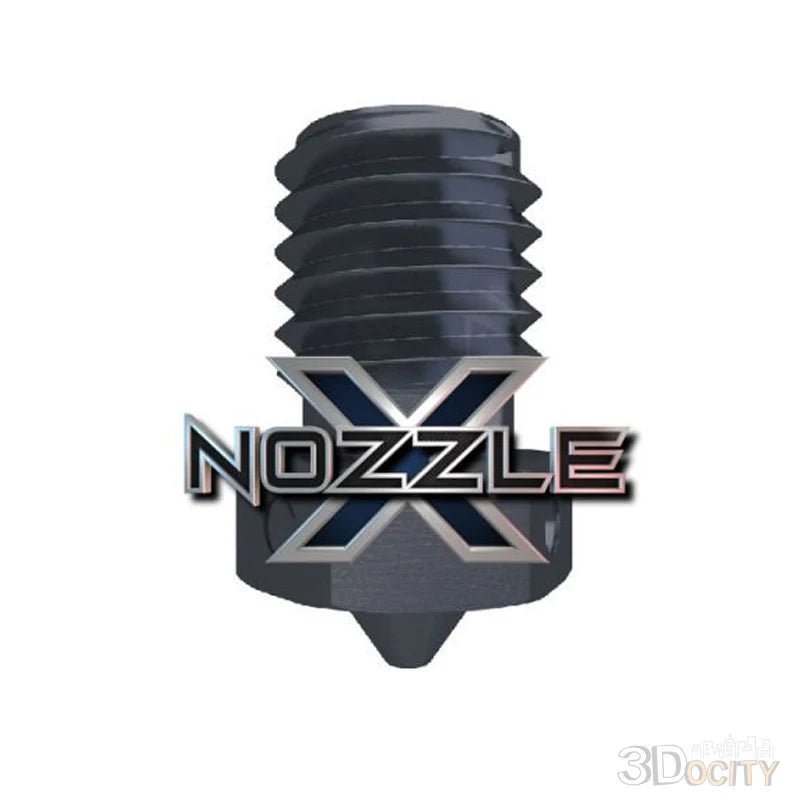

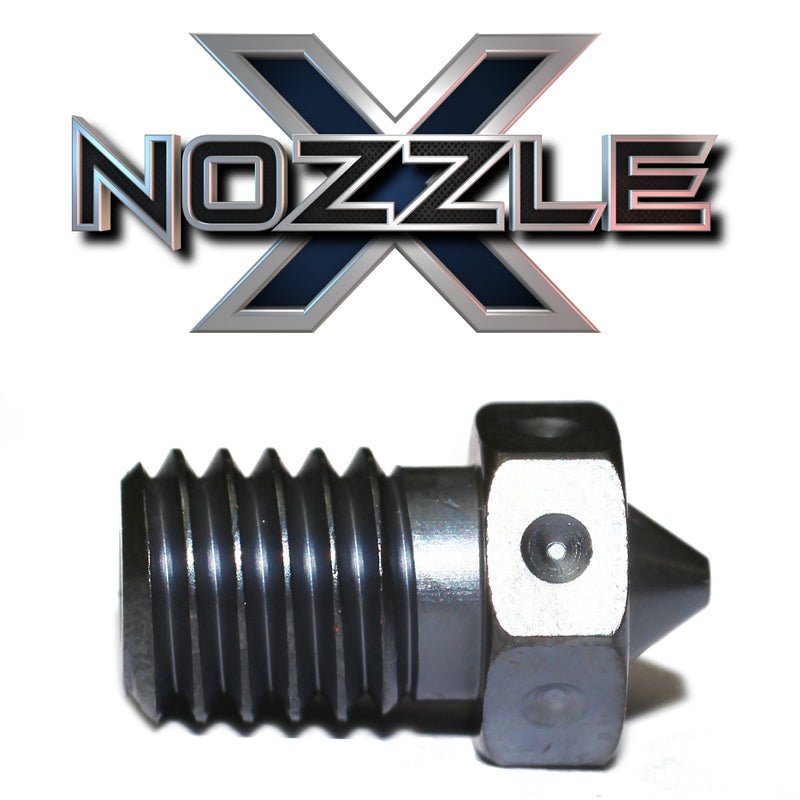

The Nozzle X is our ‘One to rule them all’ nozzle, made from a special alloy of tool steel we have been able to create a nozzle that is immensely hard, but also maintains its hardness to high temperatures without softening. We have also added a layer of hard, slick nickel plating which provides a fantastic balance of cost and wear resistance. The cherry on the top? Our NEW WS2 ‘polyphobic’ nano coating, no longer will you find hot molten polymers sticking to your nozzle.

Whilst our hardened steel nozzles are ideal for printing abrasive filaments such as ones loaded with Carbon Fibre, the extreme temperatures can cause the steel to temper and soften, ultimately reducing its abrasion resistance. And then there's our plated copper nozzles, able to cope easily with these immense temperatures but lacking the abrasion resistance required to resist Carbon Fibre. This is where the Nozzle X comes in, a nozzle able to withstand crazy temperatures without softening.

By going with a one-piece all-machined construction we were able to use our existing manufacturing processes to create our carefully tuned internal geometry, which provides fantastic flow response and keep the exact same geometry and compatibility as the rest of the E3D ecosystem.

Benefits of our WS2 ‘polyphobic’ nano-coating:

● Less build up, particularly of sticky and filled materials to the nozzle cone

● Improved first layer reliability; the slick coating has a reduced tendency to ‘drag’ material, particularly at sharp corners where tracks can peel up

● Slicker, smooth top solid layers with a glassy like finish as a result of the smooth laydown of material

● Easier nozzle cleaning, what little material that does adhere is easily wiped away with a paper towel leaving a very clean nozzle.

Package Contents

1 x Nozzle X to suit v6 hotends and 1.75mm filament.

Adaptation Models

e3d v6 hotends. V6 nozzles are not compatible with Volcano, SuperVolcano or Cyclops heater blocks.
