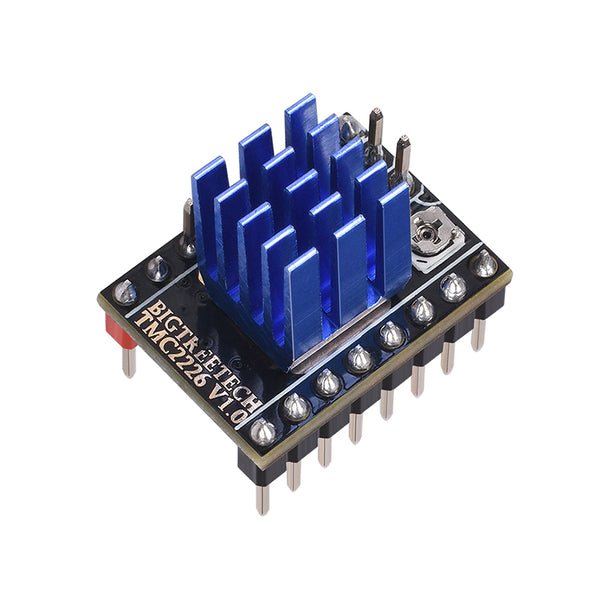

BIGTREETECH TMC2226 V1.0 Stepper Motor Driver

The BIGTREETECH TMC2226 V1.0 Stepper Motor Driver is a high-performance driver module engineered for precision and quiet operation in 3D printers, CNC machines, and other automated equipment. This advanced driver module offers superior features such as stealthChop2 for silent operation, spreadCycle for dynamic motor control, and stallGuard4 for sensorless homing. Designed for ease of integration, the TMC2226 V1.0 is compatible with a wide range of control boards, making it a versatile and valuable upgrade for enhancing the performance of your stepper motor-driven systems.

Specifications:

• Model: TMC2226 V1.0
• Manufacturer: BIGTREETECH
• Input Voltage: 4.75V - 29V DC
• Current Rating: Up to 2A RMS, 2.8A peak
• Microstepping: Up to 256 microsteps
• Communication Interface: UART
• Features:
  • stealthChop2 for ultra-quiet operation
  • spreadCycle for high dynamic motion
  • stallGuard4 for sensorless homing
  • CoolStep for dynamic current adjustment
• Compatibility: Compatible with most 3D printer control boards (e.g., RAMPS, SKR, etc.)
• Dimensions: Standard form factor for easy integration into existing setups

Key Attributes:

• Ultra-Quiet Operation: Utilizes stealthChop2 technology to significantly reduce motor noise, making it ideal for noise-sensitive environments.
• Smooth and Precise Motion: spreadCycle technology ensures smooth and accurate control of stepper motors, improving print quality and performance.
• Sensorless Homing: stallGuard4 feature allows for sensorless homing, eliminating the need for mechanical endstops and simplifying the printer setup.
• Efficient Energy Management: CoolStep dynamically adjusts motor current to optimize performance and reduce heat generation, enhancing efficiency.
• Easy Integration: Designed to be compatible with a wide range of 3D printer control boards, making it a versatile upgrade option.
• High Current Capacity: Capable of handling up to 2A RMS and 2.8A peak current, suitable for various stepper motor applications.

The BIGTREETECH TMC2226 V1.0 Stepper Motor Driver is an excellent choice for users seeking to upgrade their 3D printer or CNC machine for improved performance and quieter operation. With its advanced features and wide compatibility, this driver module ensures reliable and efficient motor control, making it a valuable addition to any precision-driven system.
