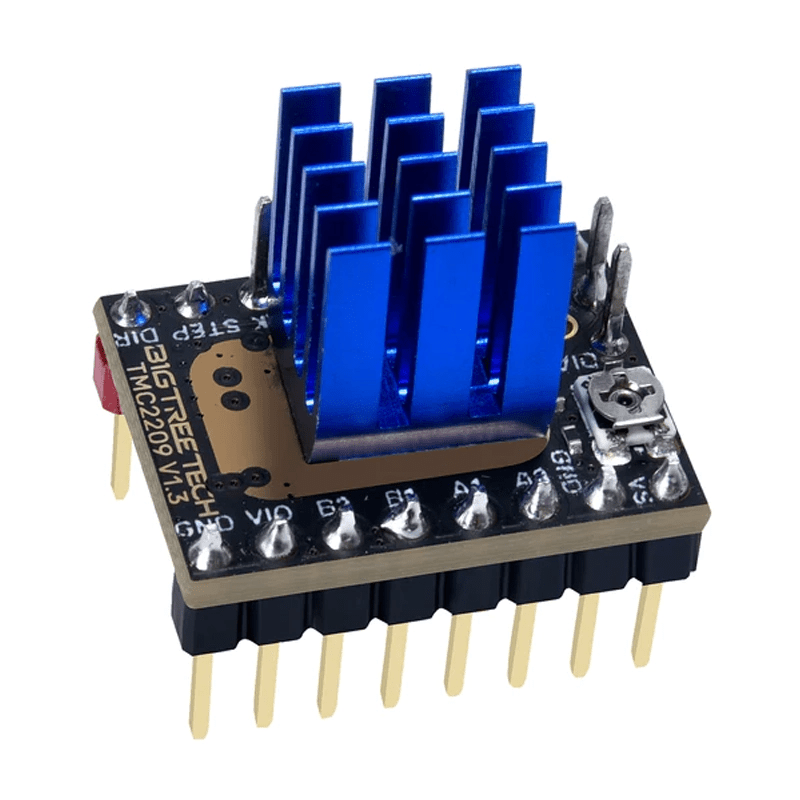

BIGTREETECH TMC2209 V1.3 Stepper Motor Driver
Pickup available at Gold Coast, Queensland. (Check Pickup Hours)
Usually ready in 4 hours
$9.75 Flat Rate Shipping.
Spend $100+ and get FREE Shipping
Local Australian Stock, Shipped Same Day!
Flexible returns
The BIGTREETECH TMC2209 V1.3 Stepper Motor Driver represents the pinnacle of silent stepper motor control technology, delivering exceptional performance for demanding 3D printing and CNC applications. This advanced driver utilizes StealthChop2™ ultra-quiet technology to achieve virtually silent motor operation while maintaining precise control and reliability. With its enhanced 2.8A peak current capability and comprehensive feature set including sensorless homing, stall detection, and intelligent thermal management, the TMC2209 V1.3 transforms ordinary stepper motors into high-performance, whisper-quiet precision instruments.
Engineered for seamless integration with modern 3D printer control boards, this driver module combines cutting-edge Trinamic technology with practical features that eliminate common printing issues. The integrated StallGuard4™ provides real-time stall detection for sensorless homing capabilities, while CoolStep™ current dynamic control reduces energy consumption by up to 75% and minimizes heat generation. Compatible with both UART and STEP/DIR operating modes, the TMC2209 V1.3 offers flexible configuration options and supports microstepping up to 256 subdivisions for incredibly smooth motion control and superior print quality.
Key Features:
StealthChop2™ Ultra-Silent Operation: Advanced chopper technology reduces motor noise to virtually inaudible levels, creating an exceptionally quiet printing environment without compromising performance.
High Current Capability: Supports up to 2.8A peak current (2.0A RMS continuous) with wide 4.75V-28V operating voltage range for powerful motor control across various applications.
StallGuard4™ Sensorless Homing: Integrated stall detection technology enables precise endstop-free homing by monitoring motor load and detecting mechanical obstructions or end-of-travel conditions.
CoolStep™ Energy Efficiency: Dynamic current control reduces power consumption by up to 75% while minimizing heat generation and extending motor life through intelligent load-based current adjustment.
MicroPlyer™ Precision Control: Advanced interpolation provides up to 256 microstepping subdivisions for incredibly smooth motion and reduced vibration, even with limited pulse frequency systems.
Dual Operating Modes: Supports both UART for advanced configuration and monitoring, plus traditional STEP/DIR mode for simple plug-and-play compatibility with existing systems.
SpreadCycle™ High-Dynamic Control: Sophisticated chopper algorithm ensures stable, jitter-free motor operation while preventing step loss and mechanical deviation under varying loads.
Enhanced Thermal Management: Large-area cooling pad design provides superior heat dissipation for reliable operation during extended printing sessions and high-performance applications.
Universal Compatibility: Drop-in replacement for A4988, DRV8825, TMC2100, and TMC2208 drivers, compatible with most 3D printer control boards without firmware modifications.
Specifications:
Driver Technology: Trinamic TMC2209 stepper motor driver IC
Current Ratings: 2.0A RMS continuous, 2.8A peak current
Operating Voltage: 4.75V to 28V DC (VM power input)
Logic Voltage: 3.3V to 5V (VCC_IO)
Microstepping Resolution: 2, 4, 8, 16 native steps (up to 256 with MicroPlyer interpolation)
Operating Modes: STEP/DIR (standalone) and UART (configurable)
Module Dimensions: 15.24mm × 20.32mm (standard StepStick footprint)
Current Setting Range: VREF 0.2V to 2.2V (factory default: 1.2V ±0.1V)
Factory Default RMS Current: ~0.9A (adjustable via potentiometer)
Sense Resistors: 110mΩ precision resistors for accurate current measurement
Advanced Features: StealthChop2™, StallGuard4™, CoolStep™, SpreadCycle™, MicroPlyer™
Protection Features: Thermal shutdown, short circuit protection, open load detection
Interface Pins: Enable, MS1/MS2 (microstep), UART (PDN), CLK, STEP, DIR, DIAG, VREF, INDEX
Compatible Boards: SKR series, Octopus, Manta series, MKS Gen L, RAMPS 1.4, and most standard 3D printer control boards
Heatsink Compatibility: Standard heatsink mounting with included adhesive thermal pads
Configuration Software: Compatible with Marlin, Klipper, RepRapFirmware, and other major 3D printer firmwares
