Product information

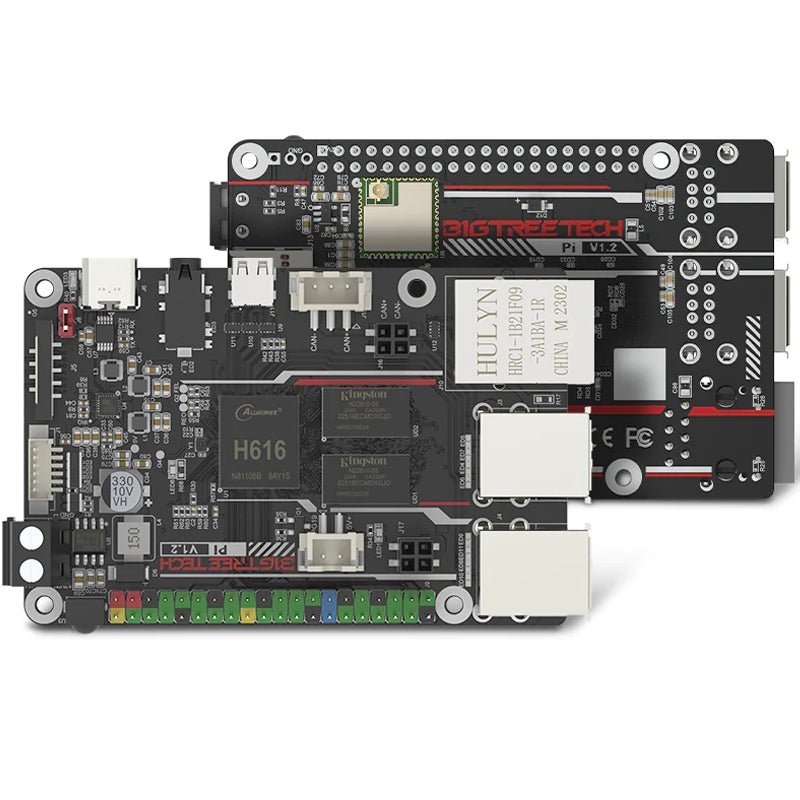

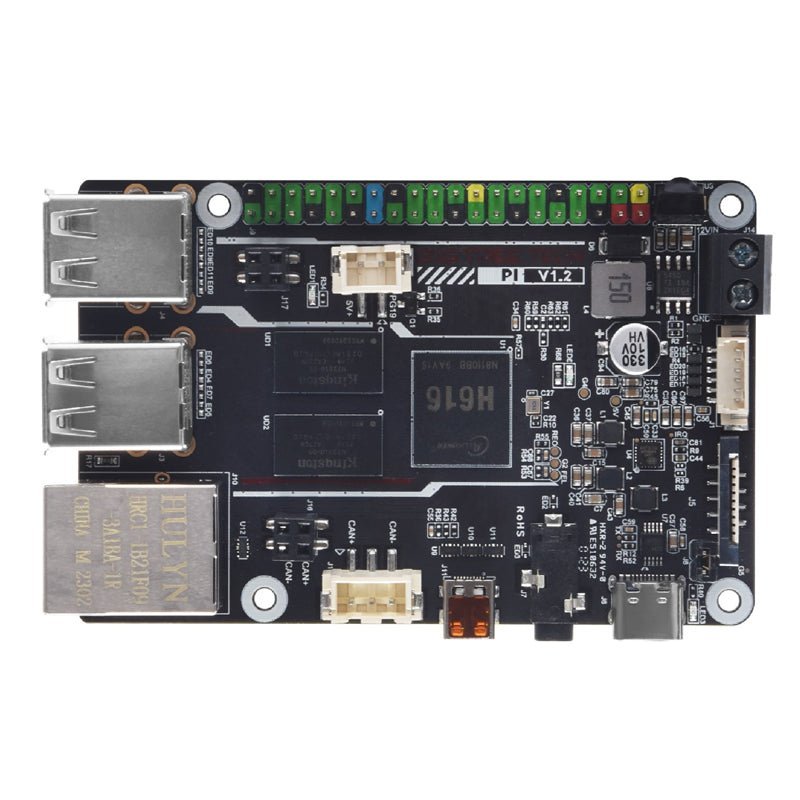

BIGTREETECH Pi v1.2 has the same size and the same mounting hole location as Raspberry Pi, with 2.4GHz WiFi built

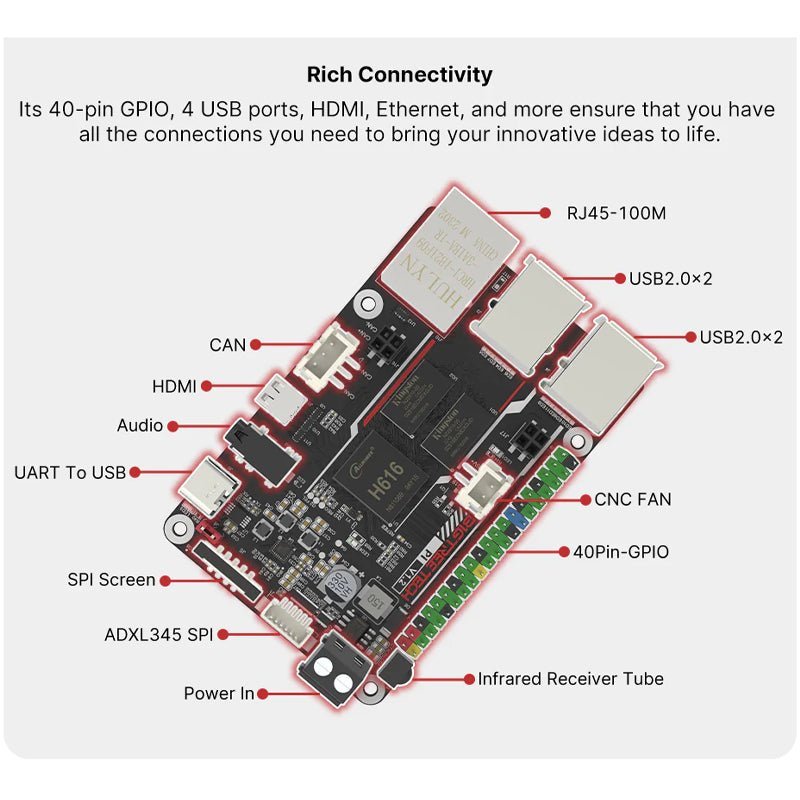

Feature Highlights

1. CPU: ALLWINNER H616, Quad-core Cortex-A53 @1.5GHz
2.
GPU: Mali G31 MP2, Support OpenGL3.2
3.
RAM: 1GB DDR3L SDRAM
4.
Display: HDMI2.0A Port, 4K Supported
5.
4 x USB 2.0 Ports
6.
Fast Ethernet + 100Mbps WiFi
7.
Audio: 3.5mm Jack
8.
40-pin GPIO
9.
Display: SPI Port
10.
ADXL345 Port
11.
Onboard connecting port for USB To CAN Module.
12.
Built-in IR Receiver
13.
The mounting holes are in the same location as Raspberry

Specifications

1. Product Dimensions: 85 x 56 mm
2.
Mounting Size: 64 x 49.4 mm
3.
Type-C Input Voltage: DC 5V±5%/2A
4.
Input Voltage of Power IN Terminal: DC 12V-24V
5.
Pi v1.2 Output Voltage: 3.3V±2%/100mA
6.
Pi v1.2 WiFi: 2.4G/802.11 b/g/n Wireless LA

Package Contents

1x BTT Pi v1.2 board
