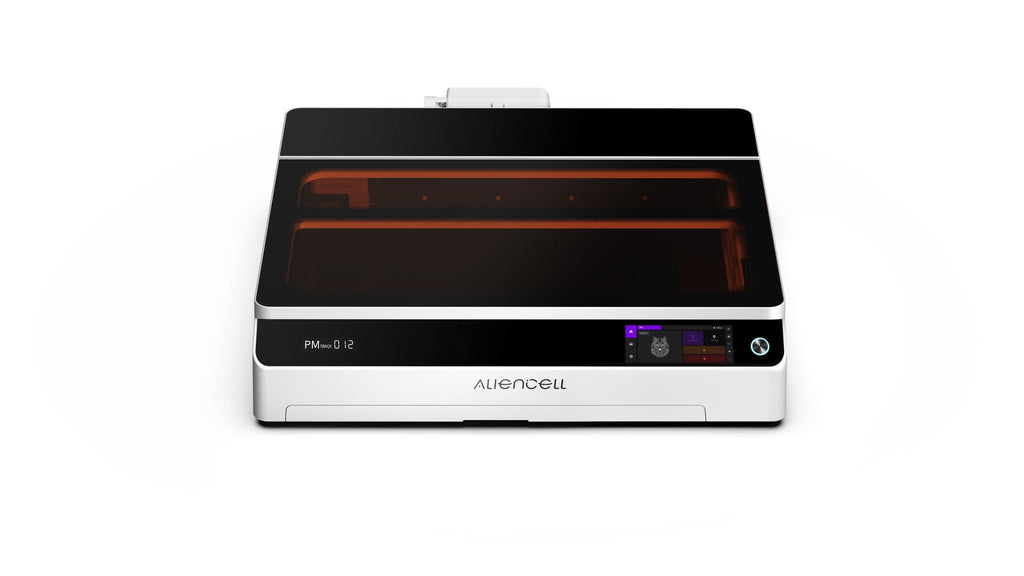

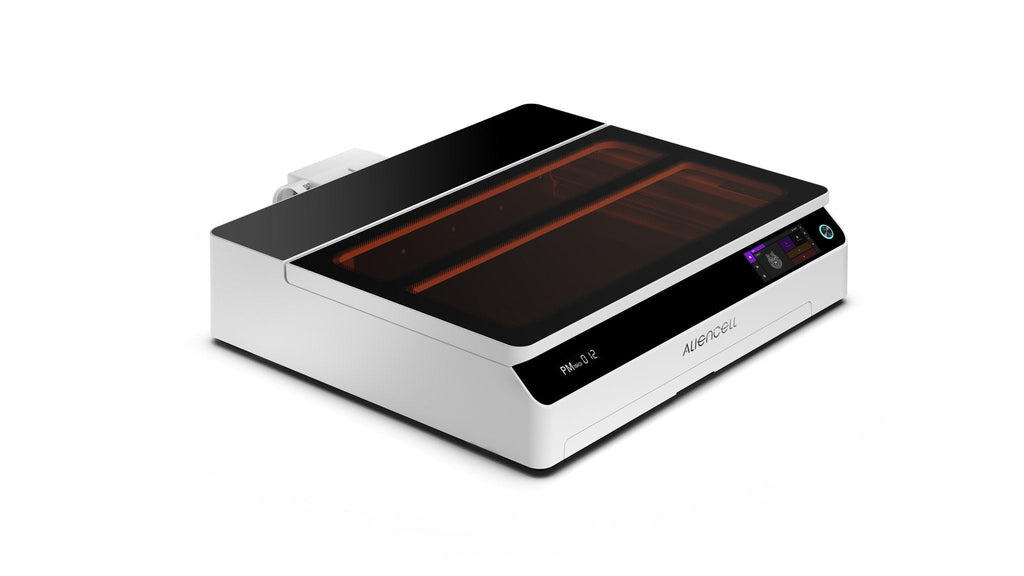

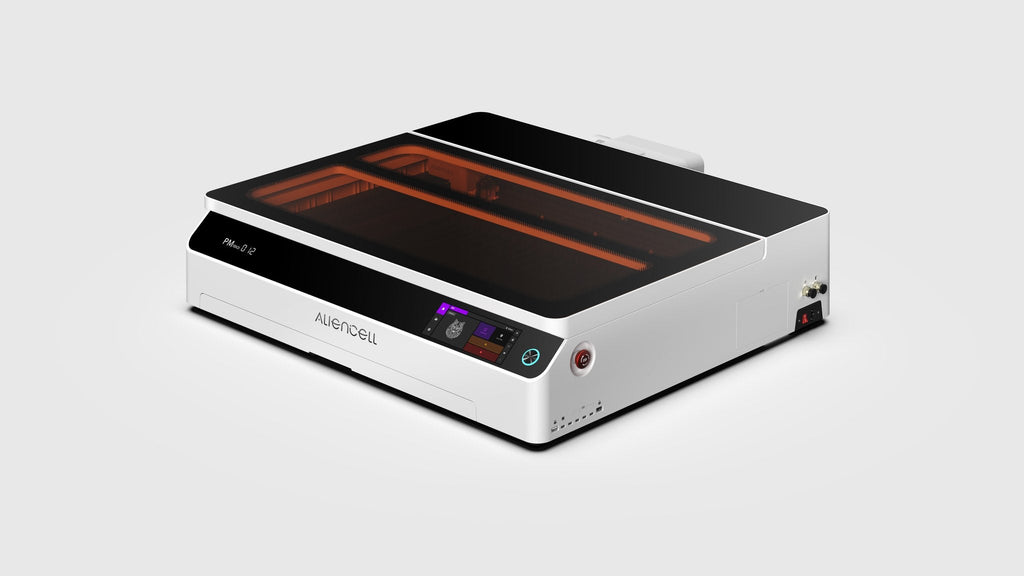

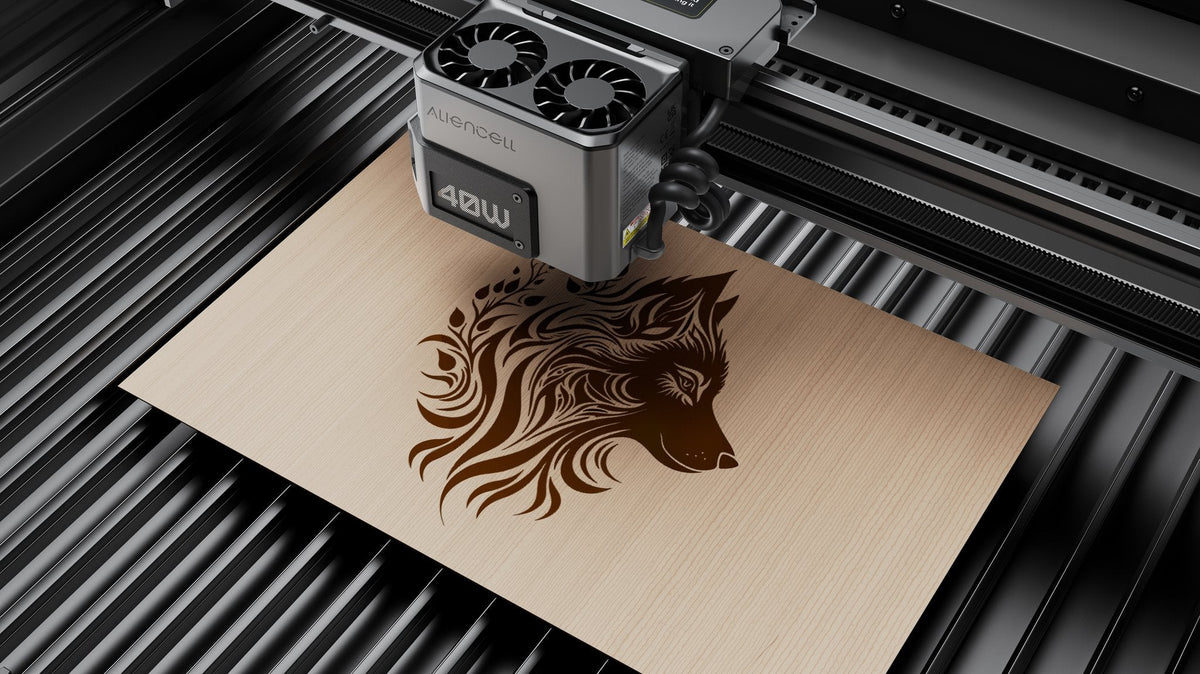

The Aliencell X1 is a diode laser engraver and cutter built for small workshops, custom product businesses and serious hobbyists. It comes with the Air Assist Pro included, which keeps cuts clean and reduces smoke and debris at the cut point. Choose from 20W, 40W or 60W laser modules depending on what you plan to cut — all three use the same machine body and are swappable.
Compatible with LightBurn and Aliencell Space software. Works on Windows 7+ and macOS.
Key Features:
Large Work Area: 610 x 465mm cutting and engraving area, suitable for larger material sheets and batch production.

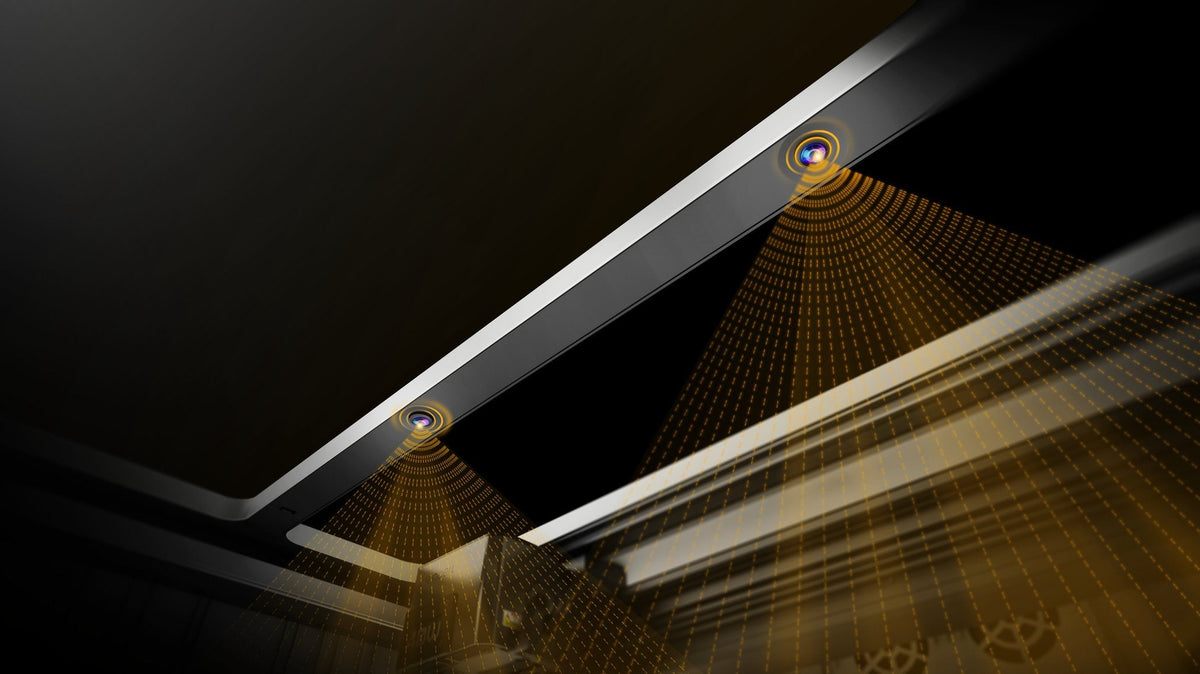

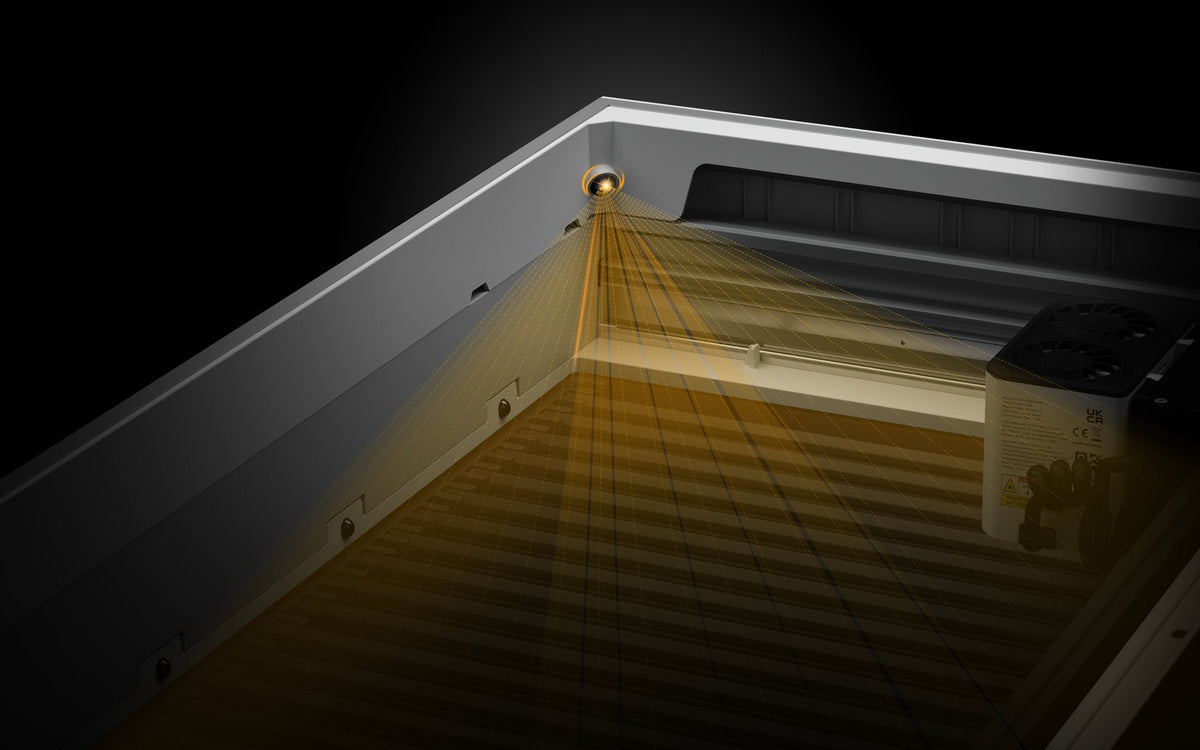

Dual 8MP Cameras: Automatic material positioning with AI distortion correction. What you see on screen is exactly where the laser goes.

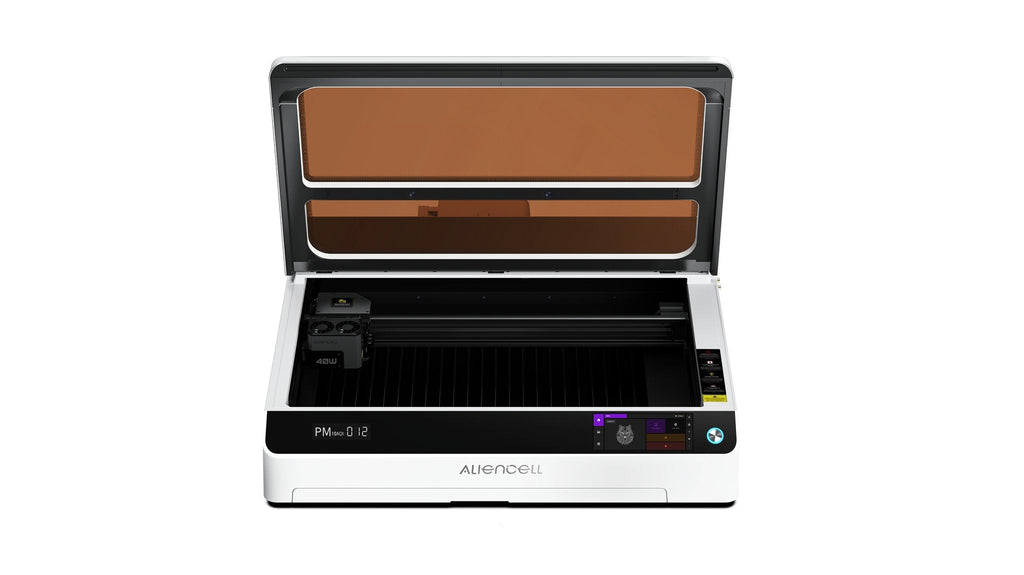

Standalone Touchscreen: Linux-based 6.86" touch panel with built-in memory. Runs jobs offline without a connected PC.

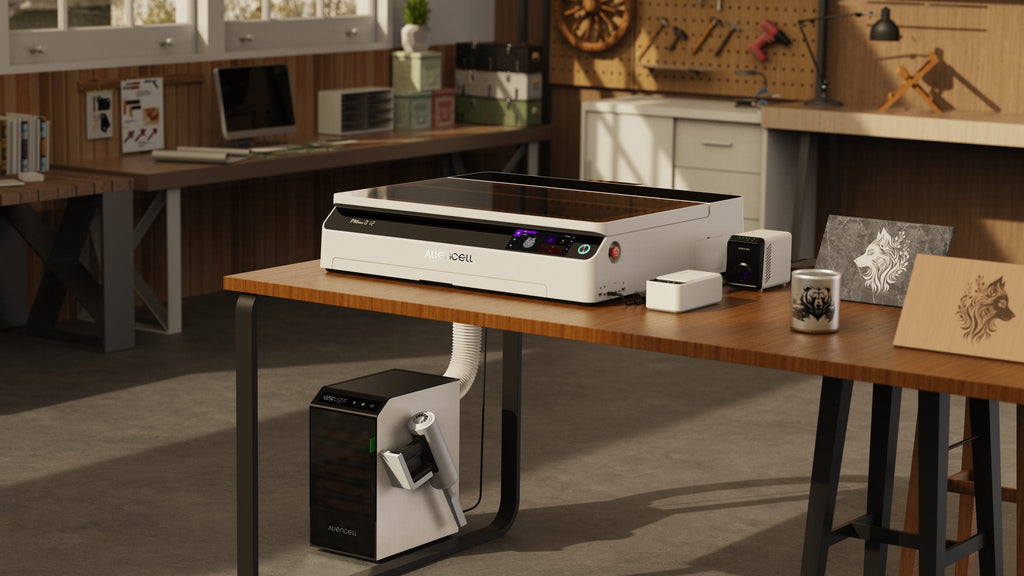

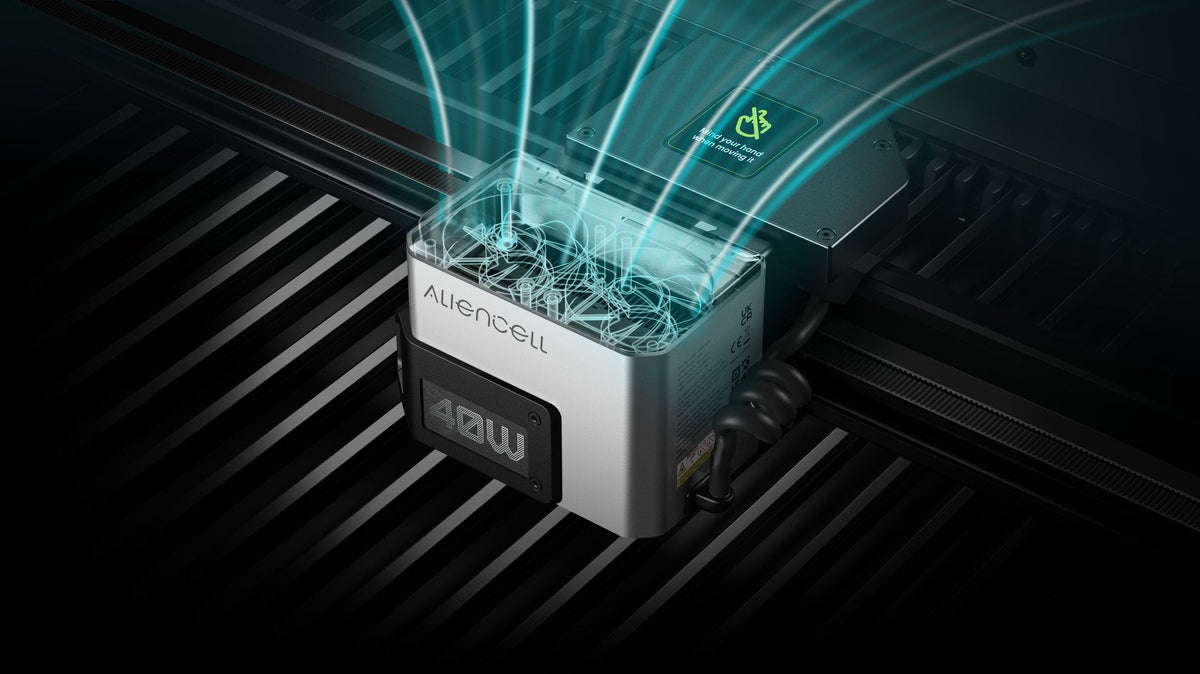

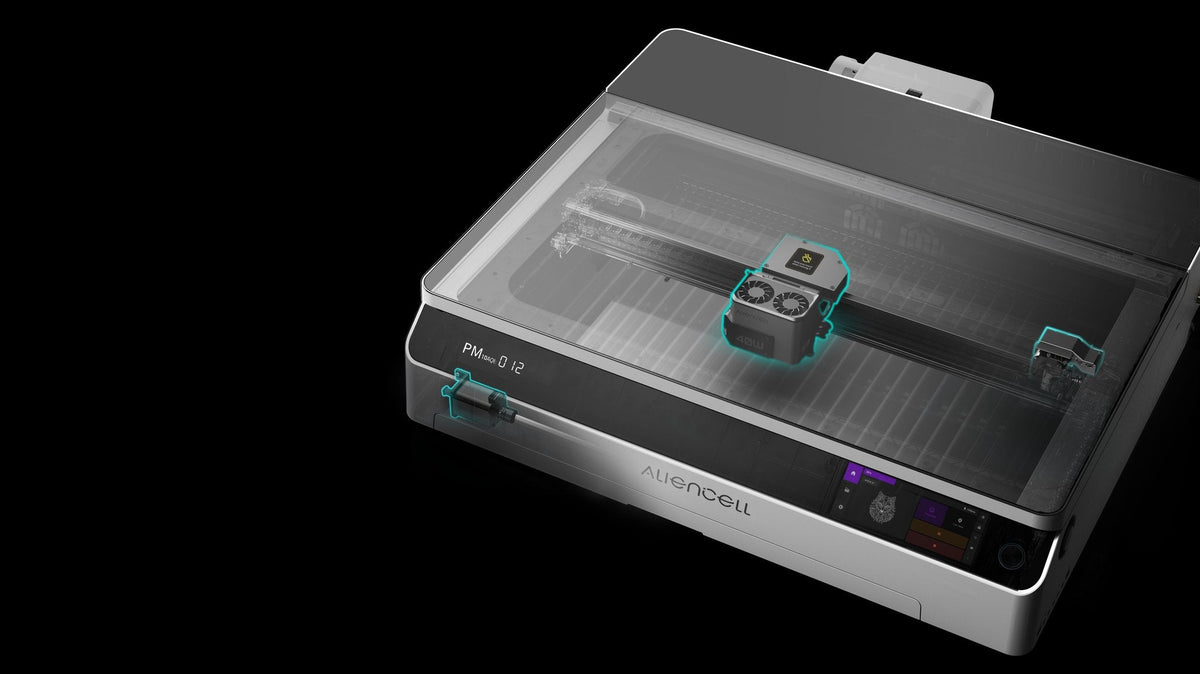

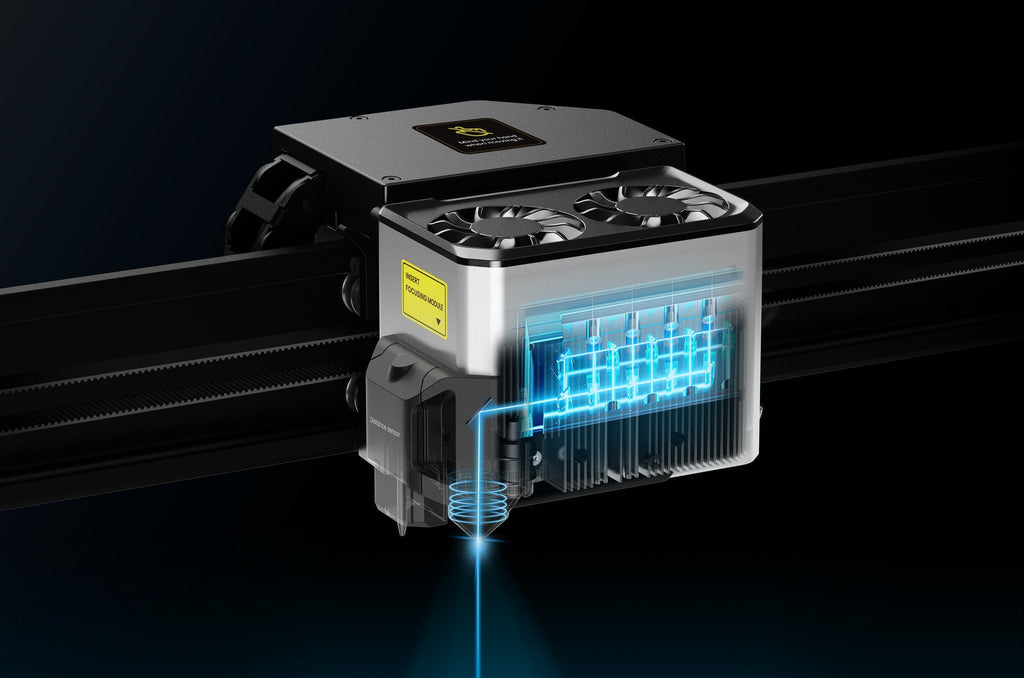

Air Assist Pro Included: Keeps the cut zone clear of smoke and debris for cleaner edges and more consistent results.
High Speed: Up to 600mm/s engraving speed with 20,000mm/s² acceleration.
Autofocus: Automatic height sensing adjusts focus to the material surface. No manual guesswork.
Remote Monitoring: Built-in 720p security camera lets you monitor jobs remotely through the software.

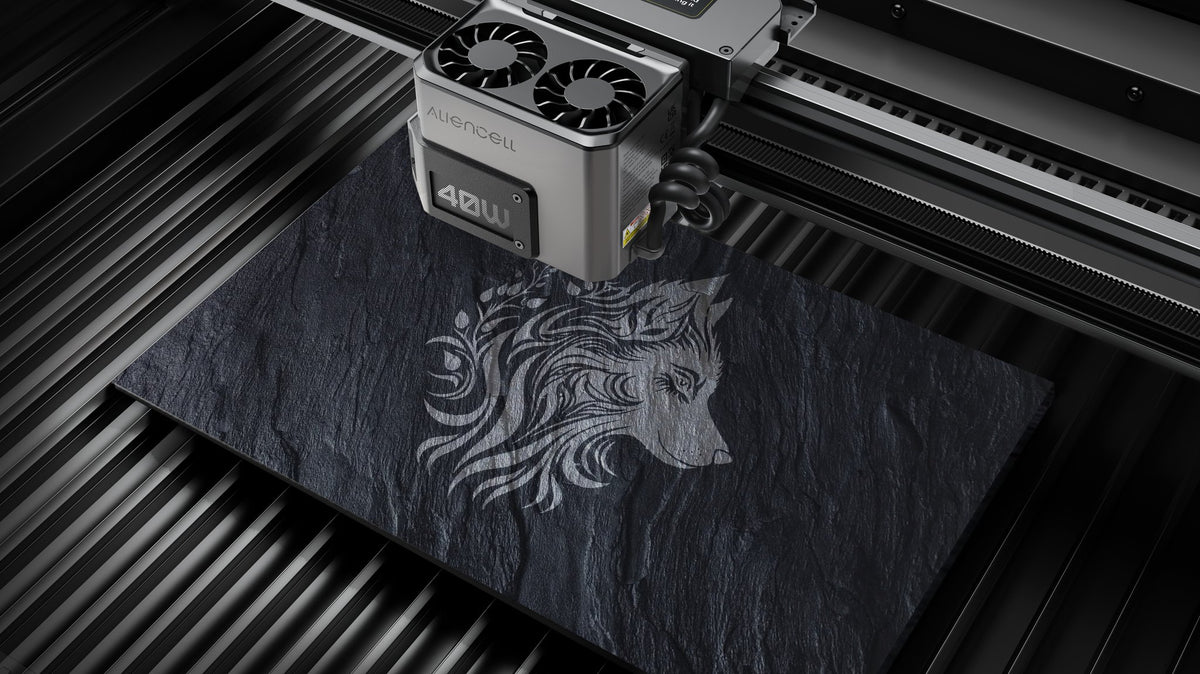

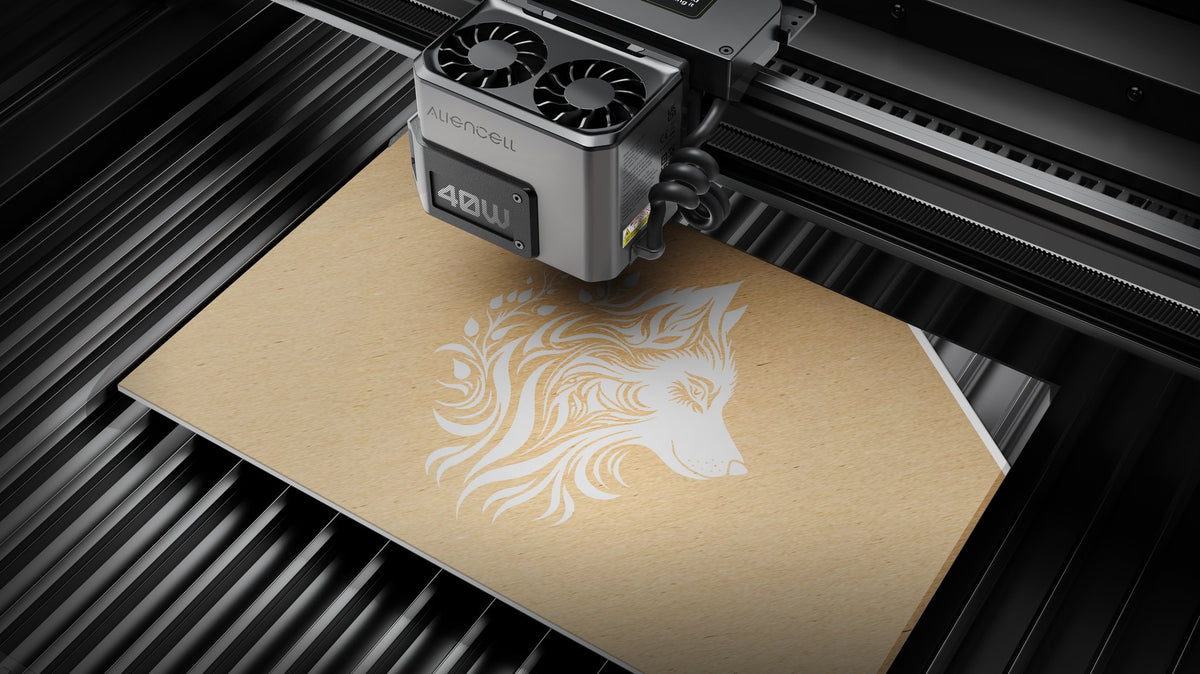

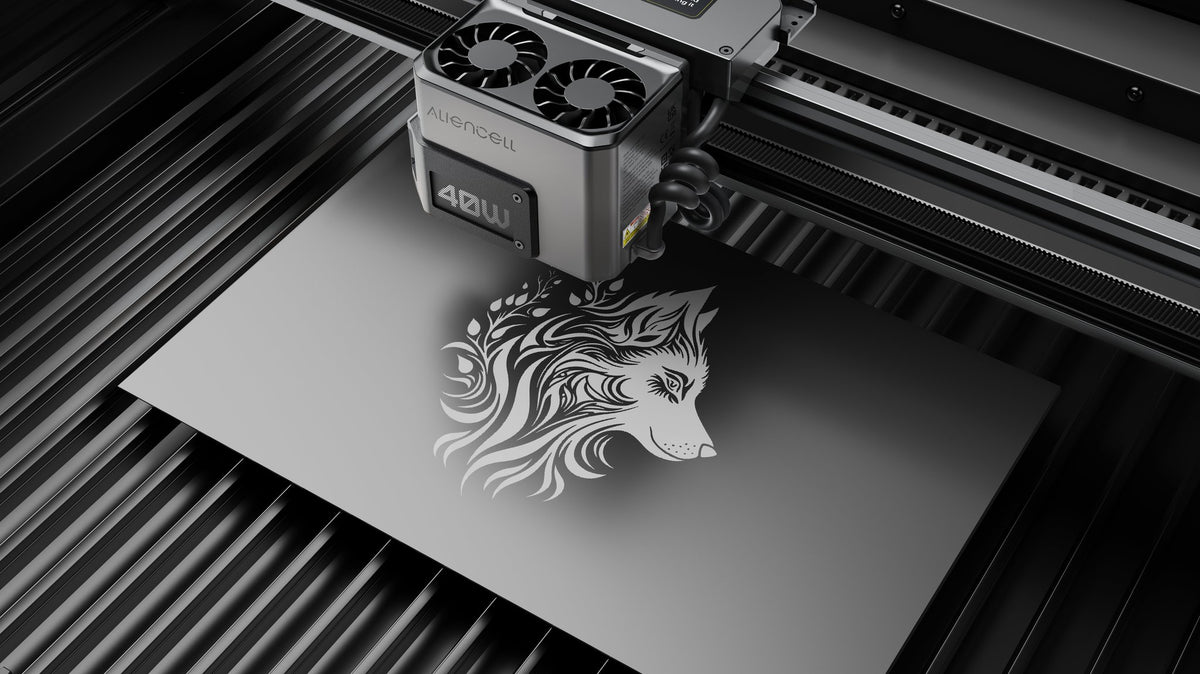

300+ Compatible Materials: Cuts and engraves wood, acrylic, leather, cardboard, paper, cork, Delrin and more. Engraves slate, aluminium, ceramic, marble and coated metals.
Specifications:

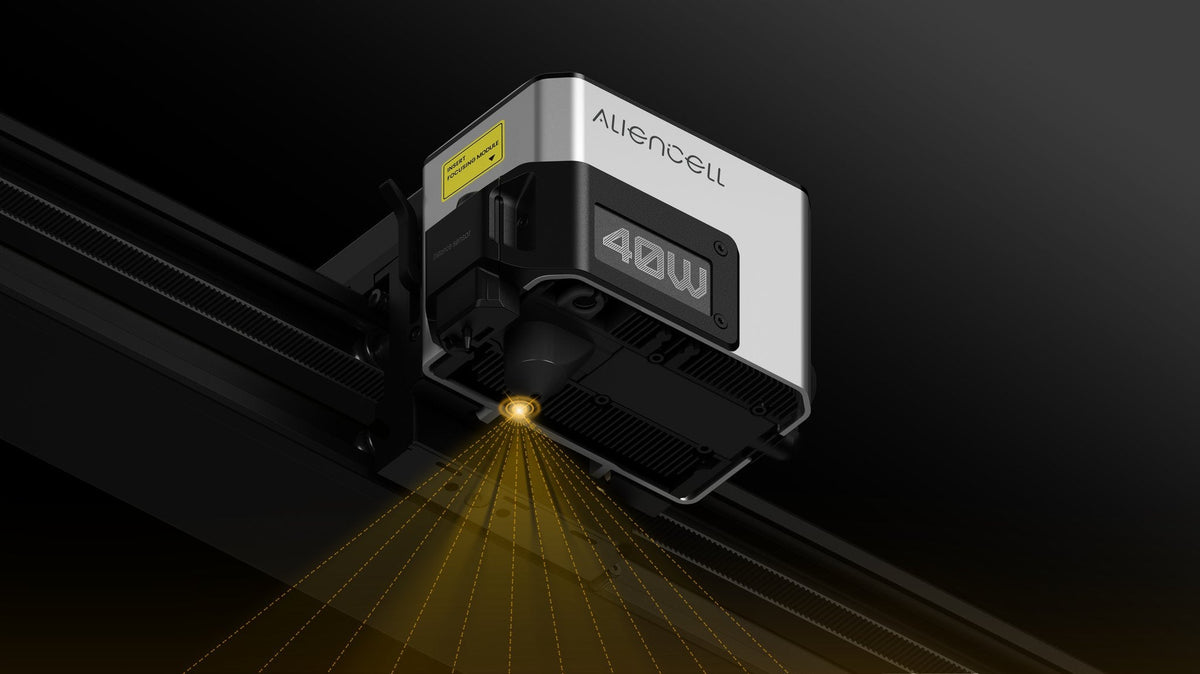

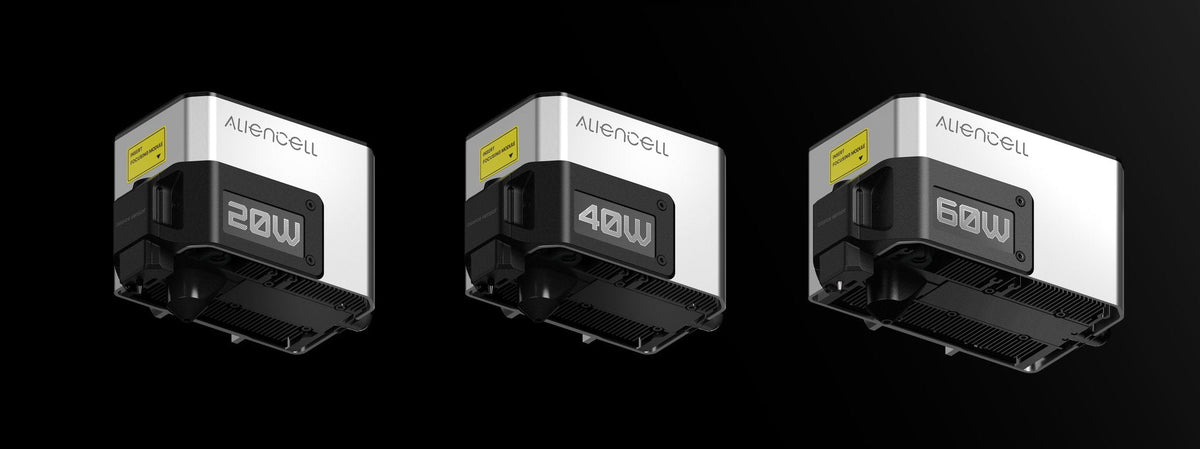

Laser Module Options: 20W / 40W / 60W diode (select variant above)
Work Area: 610 x 465mm
Max Engraving Speed: 600mm/s
Acceleration: 20,000mm/s²
Laser Spot Size: 0.08 x 0.10mm (compressed)
Cameras: Dual 8MP positioning cameras + 720p security camera
Connectivity: USB, Wi-Fi, Bluetooth 5.2
Software: LightBurn and Aliencell Space (Windows 7+ and macOS)
File Formats: SVG, JPG, PNG, DXF, BMP, TIF
Air Assist: Included (Air Assist Pro)
Laser Module Lifespan: Up to 10,000 hours
Warranty: 1 year on machine, 3 months on laser
